產品概述
貼片高分子PTC（Positive Temperature
Coefficient）又稱聚合物自復保險絲，具有獨特的正溫度系數電阻特性，即在一定的溫度范圍內，自身的電阻會隨著溫度的上升而增大，當過流產生時，高分子PTC溫度上升，電阻急劇升高，起到過流保護的作用，而當過流狀態消除后，高分子PTC的電阻又恢復到正常狀態。
規格：
貼片封裝PPTC：
Coefficient）又稱聚合物自復保險絲，具有獨特的正溫度系數電阻特性，即在一定的溫度范圍內，自身的電阻會隨著溫度的上升而增大，當過流產生時，高分子PTC溫度上升，電阻急劇升高，起到過流保護的作用，而當過流狀態消除后，高分子PTC的電阻又恢復到正常狀態。
規格：
LP-NSML200
LP-ISML260
LP-MSML400/12
LP-MSM150/24
LP-MSM075/24
LP-NSM050/16
LP-MSM260/16
LP-MSML-400/12
LP-SM200C
LP-NSM075/16
LP-ISM005/24
LP-MSM200/16
LP-ISM050
LP-NSM020/24
LP-NSM150/8
LP-MSM110/33
LP-NSM系列產品(1206mils/3216mm)電氣性能:
LP-NSM005,LP-NSM012,LP-NSM016,LP-NSM020
LP-NSM035,LP-NSM050,LP-NSM075,LP-NSM110,LP-NSM150
LP-uSM系列產品(1210mils)電氣性能:
LP-USM005,LP-USM010,LP-USM020,LP-USM035
LP-USM050,LP-USM075,LP-USM110,LP-USM150
LP-USM175,LP-USM200
LP-ISM系列產品(0805mils/2012mm)電氣性能:
LP-ISM005,LP-ISM010,LP-ISM020,LP-ISM035,LP-ISM050,LP-ISM075
LP-ISM110

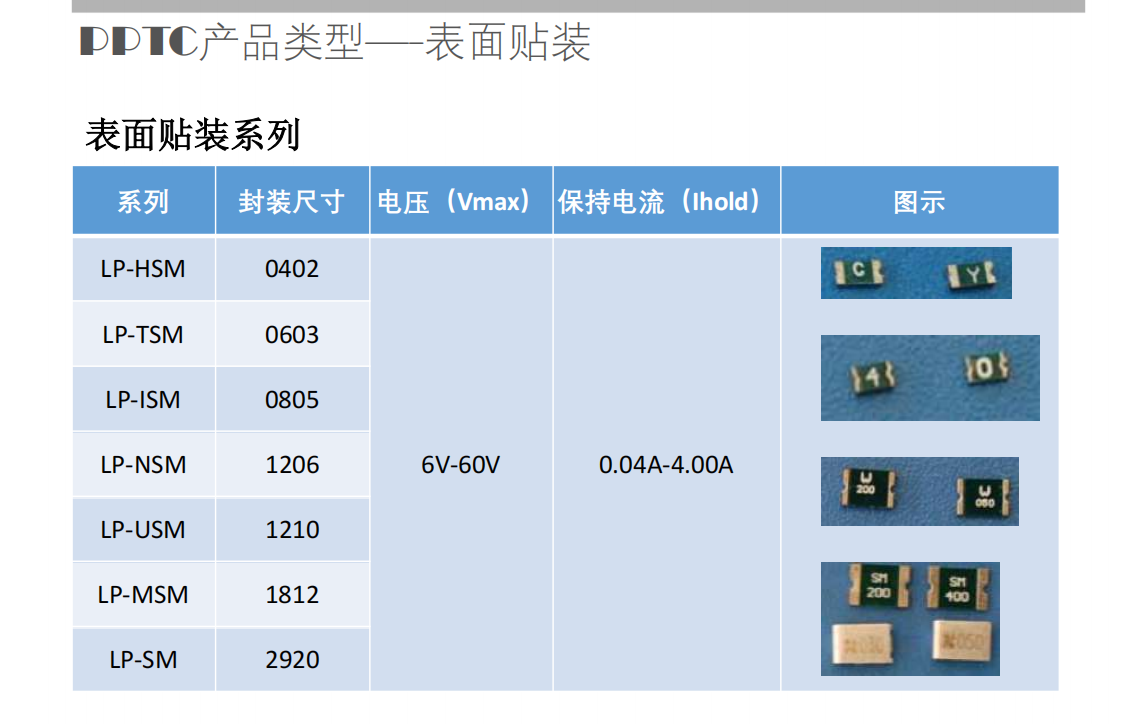

貼片封裝PPTC：
| Way-on Model | Package | IH @25℃ | IT @25℃ | Vmax | Imax | Max Time to Trip | Pd Max | Rmin | R1 max | UL | TUV | MPQ | |
| （A） | （A） | （V） | （A） | Current（A） | Time （S） | （W） | （Ω） | （Ω） | （Pcs） | ||||
| LP-TSM004 | 0603 | 0.04 | 0.12 | 15 | 1 | 0.20 | 1.00 | 0.5 | 4.000 | 40.000 | √ | √ | 5K |
| LP-TSM004/24 | 0603 | 0.04 | 0.12 | 24 | 1 | 0.20 | 1.00 | 0.5 | 4.000 | 40.000 | × | × | 5K |
| LP-TSM005 | 0603 | 0.05 | 0.15 | 15 | 1 | 0.25 | 1.00 | 0.5 | 2.000 | 40.000 | √ | √ | 5K |
| LP-TSM010 | 0603 | 0.10 | 0.25 | 15 | 3 | 0.50 | 1.00 | 0.5 | 0.900 | 6.000 | √ | √ | 4K |
| LP-TSM016 | 0603 | 0.16 | 0.40 | 9 | 4 | 0.80 | 1.00 | 0.5 | 0.700 | 4.200 | √ | √ | 5K |
| LP-TSM020 | 0603 | 0.20 | 0.50 | 9 | 4 | 1.00 | 0.60 | 0.5 | 0.550 | 3.500 | √ | √ | 5K |
| LP-TSML035 | 0603 | 0.35 | 0.75 | 6 | 8 | 8.00 | 0.10 | 0.5 | 0.200 | 1.000 | √ | √ | 5K |
| LP-TSML050F | 0603 | 0.50 | 1.00 | 6 | 8 | 8.00 | 0.60 | 0.5 | 0.100 | 1.000 | √ | √ | 4K |
| LP-ISM005 | 0805 | 0.05 | 0.15 | 15 | 10 | 0.50 | 2.00 | 0.5 | 3.000 | 50.000 | √ | √ | 4K |
| LP-ISM005/24 | 0805 | 0.05 | 0.15 | 24 | 10 | 0.50 | 2.00 | 0.5 | 3.000 | 50.000 | × | × | 4K |
| LP-ISM010 | 0805 | 0.10 | 0.30 | 15 | 10 | 0.50 | 1.50 | 0.5 | 1.000 | 6.000 | √ | √ | 4K |
| LP-ISM010/24 | 0805 | 0.10 | 0.30 | 24 | 10 | 0.50 | 1.50 | 0.5 | 1.000 | 6.000 | × | × | 4K |
| LP-ISM020 | 0805 | 0.20 | 0.50 | 9 | 40 | 8.00 | 0.02 | 0.5 | 0.650 | 3.500 | √ | √ | 4K |
| LP-ISM020/12 | 0805 | 0.20 | 0.50 | 12 | 40 | 8.00 | 0.02 | 0.5 | 0.650 | 3.500 | × | × | 4K |
| LP-ISM020/15 | 0805 | 0.20 | 0.50 | 15 | 40 | 8.00 | 0.02 | 0.5 | 0.650 | 3.500 | × | × | 4K |
| LP-ISM035 | 0805 | 0.35 | 0.75 | 6 | 40 | 8.00 | 0.10 | 0.5 | 0.250 | 1.200 | √ | √ | 4K |
| LP-ISM050 | 0805 | 0.50 | 1.00 | 6 | 40 | 8.00 | 0.10 | 0.5 | 0.150 | 0.850 | √ | √ | 4K |
| LP-ISM050/8 | 0805 | 0.50 | 1.00 | 8 | 40 | 8.00 | 0.10 | 0.5 | 0.150 | 0.850 | × | × | 4K |
| LP-ISM050/15 | 0805 | 0.50 | 1.00 | 15 | 40 | 8.00 | 0.10 | 0.5 | 0.150 | 0.850 | × | × | 4K |
| LP-ISM075 | 0805 | 0.75 | 1.50 | 6 | 40 | 8.00 | 0.20 | 0.5 | 0.100 | 0.400 | √ | √ | 4K |
| LP-ISML075 | 0805 | 0.75 | 1.50 | 8 | 50 | 8.00 | 0.20 | 1.0 | 0.060 | 0.300 | √ | √ | 4K |
| LP-ISML110 | 0805 | 1.10 | 2.20 | 8 | 50 | 8.00 | 0.30 | 2.0 | 0.030 | 0.120 | √ | √ | 4K |
| LP-ISML110/12 | 0805 | 1.10 | 2.20 | 12 | 50 | 8.00 | 0.30 | 2.0 | 0.010 | 0.160 | √ | × | 4K |
| LP-NSM005 | 1206 | 0.05 | 0.15 | 60 | 10 | 1.00 | 1.20 | 0.6 | 2.000 | 50.000 | × | √ | 4K |
| LP-NSM010 | 1206 | 0.10 | 0.25 | 60 | 10 | 1.00 | 0.20 | 0.6 | 1.600 | 15.000 | × | × | 4K |
| LP-NSM012 | 1206 | 0.125 | 0.29 | 30 | 20 | 1.00 | 0.20 | 0.6 | 1.500 | 6.000 | √ | √ | 4K |
| LP-NSM016 | 1206 | 0.16 | 0.37 | 30 | 20 | 1.00 | 0.30 | 0.6 | 1.200 | 4.500 | √ | √ | 4K |
| LP-NSM020 | 1206 | 0.20 | 0.40 | 16 | 40 | 8.00 | 0.05 | 0.6 | 0.600 | 2.500 | √ | √ | 4K |
| LP-NSM020/24 | 1206 | 0.20 | 0.40 | 24 | 40 | 8.00 | 0.05 | 0.6 | 0.600 | 2.500 | √ | × | 4K |
| LP-NSM020/30 | 1206 | 0.20 | 0.40 | 30 | 40 | 8.00 | 0.05 | 0.6 | 0.600 | 2.500 | × | × | 4K |
| LP-NSM025/16 | 1206 | 0.25 | 0.50 | 16 | 40 | 8.00 | 0.08 | 0.6 | 0.550 | 2.300 | √ | × | 4K |
| LP-NSM025/24 | 1206 | 0.25 | 0.50 | 24 | 40 | 8.00 | 0.08 | 0.6 | 0.550 | 2.300 | √ | × | 4K |
| LP-NSM035 | 1206 | 0.35 | 0.75 | 6 | 40 | 8.00 | 0.10 | 0.6 | 0.300 | 1.200 | √ | √ | 4K |
| LP-NSM035/16 | 1206 | 0.35 | 0.75 | 16 | 40 | 8.00 | 0.10 | 0.6 | 0.300 | 1.200 | √ | √ | 4K |
| LP-NSM035/24 | 1206 | 0.35 | 0.75 | 24 | 40 | 8.00 | 0.10 | 0.6 | 0.300 | 1.200 | √ | × | 4K |
| LP-NSM050 | 1206 | 0.50 | 1.00 | 6 | 40 | 8.00 | 0.10 | 0.6 | 0.150 | 0.700 | √ | √ | 4K |
| LP-NSM050/16 | 1206 | 0.50 | 1.00 | 16 | 40 | 8.00 | 0.10 | 0.6 | 0.150 | 0.700 | √ | √ | 4K |
| LP-NSM050/24 | 1206 | 0.50 | 1.00 | 24 | 40 | 8.00 | 0.10 | 0.6 | 0.150 | 0.700 | √ | × | 4K |
| LP-NSM075 | 1206 | 0.75 | 1.50 | 6 | 40 | 8.00 | 0.20 | 0.6 | 0.100 | 0.290 | √ | √ | 4K |
| LP-NSM075/16 | 1206 | 0.75 | 1.50 | 16 | 40 | 8.00 | 0.20 | 1.2 | 0.100 | 0.290 | √ | √ | 4K |
| LP-NSM090/8 | 1206 | 0.90 | 1.80 | 8 | 40 | 8.00 | 0.20 | 1.2 | 0.080 | 0.260 | √ | √ | 4K |
| LP-NSM110 | 1206 | 1.10 | 2.20 | 6 | 40 | 8.00 | 0.30 | 0.6 | 0.050 | 0.210 | √ | √ | 3.5K |
| LP-NSM110/8 | 1206 | 1.10 | 2.20 | 8 | 40 | 8.00 | 0.30 | 1.2 | 0.050 | 0.210 | √ | √ | 3.5K |
| LP-NSM110/16 | 1206 | 1.10 | 2.20 | 16 | 40 | 8.00 | 0.30 | 1.2 | 0.050 | 0.250 | × | × | 3.5K |
| LP-NSM150 | 1206 | 1.50 | 3.00 | 6 | 40 | 8.00 | 1.00 | 0.6 | 0.040 | 0.120 | √ | √ | 4K |
| LP-NSM150/8 | 1206 | 1.50 | 3.00 | 8 | 40 | 8.00 | 1.00 | 1.2 | 0.040 | 0.120 | √ | √ | 4K |
| LP-NSML150 | 1206 | 1.50 | 3.00 | 6 | 50 | 8.00 | 5.00 | 1.2 | 0.005 | 0.065 | √ | √ | 4K |
| LP-NSML150/12 | 1206 | 1.50 | 3.00 | 12 | 50 | 8.00 | 5.00 | 1.2 | 0.005 | 0.065 | √ | √ | 4K |
| LP-NSML200 | 1206 | 2.00 | 4.00 | 6 | 50 | 8.00 | 5.00 | 1.2 | 0.005 | 0.040 | √ | √ | 4K |
| LP-NSML200/12 | 1206 | 2.00 | 4.00 | 12 | 50 | 8.00 | 5.00 | 1.2 | 0.005 | 0.040 | √ | √ | 4K |
| LP-NSML200/16 | 1206 | 2.00 | 4.00 | 16 | 50 | 8.00 | 5.00 | 1.2 | 0.005 | 0.040 | √ | × | 3.5K |
| LP-NSML260 | 1206 | 2.60 | 5.20 | 6 | 50 | 8.00 | 5.00 | 1.2 | 0.003 | 0.025 | √ | √ | 4K |
| LP-NSML300 | 1206 | 3.00 | 6.00 | 6 | 50 | 8.00 | 5.00 | 1.5 | 0.003 | 0.020 | √ | √ | 4K |
| LP-NSML300/12 | 1206 | 3.00 | 6.00 | 12 | 50 | 8.00 | 5.00 | 1.5 | 0.003 | 0.020 | √ | √ | 4K |
| LP-NSML300/16 | 1206 | 3.00 | 6.00 | 16 | 50 | 8.00 | 5.00 | 1.5 | 0.003 | 0.020 | √ | × | 4K |
| LP-NSML350 | 1206 | 3.50 | 7.00 | 6 | 50 | 8.00 | 5.00 | 1.5 | 0.002 | 0.018 | √ | √ | 4K |
| LP-NSML380 | 1206 | 3.80 | 7.60 | 6 | 50 | 8.00 | 5.00 | 1.5 | 0.002 | 0.016 | √ | √ | 4K |
| LP-NSML400 | 1206 | 4.00 | 8.00 | 6 | 50 | 8.00 | 5.00 | 1.5 | 0.002 | 0.014 | √ | √ | 4K |
| LP-NSML400/12 | 1206 | 4.00 | 8.00 | 12 | 50 | 8.00 | 5.00 | 1.5 | 0.002 | 0.014 | √ | √ | 4K |
| LP-NSML450 | 1206 | 4.50 | 9.00 | 6 | 50 | 22.50 | 5.00 | 1.5 | 0.001 | 0.013 | √ | √ | 4K |
| LP-NSML450/12 | 1206 | 4.50 | 9.00 | 12 | 50 | 22.50 | 5.00 | 1.5 | 0.001 | 0.013 | √ | √ | 3.5K |
| LP-USM005 | 1210 | 0.05 | 0.15 | 30 | 10 | 0.25 | 1.50 | 1.0 | 3.600 | 50.000 | √ | √ | 4K |
| LP-USM010 | 1210 | 0.10 | 0.30 | 30 | 10 | 0.50 | 1.50 | 1.0 | 1.600 | 15.000 | √ | √ | 4K |
| LP-USM020 | 1210 | 0.20 | 0.40 | 30 | 10 | 8.00 | 0.02 | 1.0 | 0.800 | 5.000 | √ | √ | 4K |
| LP-USM035 | 1210 | 0.35 | 0.70 | 6 | 40 | 8.00 | 0.20 | 1.0 | 0.320 | 1.300 | √ | √ | 4K |
| LP-USM050 | 1210 | 0.50 | 1.00 | 6 | 40 | 8.00 | 0.10 | 1.0 | 0.250 | 0.900 | √ | √ | 4K |
| LP-USM050/16 | 1210 | 0.50 | 1.00 | 16 | 40 | 8.00 | 0.10 | 1.0 | 0.250 | 0.900 | × | × | 4K |
| LP-USM075 | 1210 | 0.75 | 1.50 | 6 | 40 | 8.00 | 0.10 | 1.0 | 0.130 | 0.400 | √ | √ | 4K |
| LP-USM110 | 1210 | 1.10 | 2.20 | 6 | 40 | 8.00 | 0.30 | 1.0 | 0.060 | 0.210 | √ | √ | 4K |
| LP-USM150 | 1210 | 1.50 | 3.00 | 6 | 40 | 8.00 | 0.50 | 1.0 | 0.040 | 0.110 | √ | √ | 4K |
| LP-USML450/12 | 1210 | 4.50 | 9.00 | 12 | 50 | 22.50 | 5.00 | 1.5 | 0.002 | 0.013 | √ | × | 4K |
| LP-MSM010 | 1812 | 0.10 | 0.20 | 60 | 10 | 1.50 | 0.15 | 1.0 | 1.600 | 15.000 | √ | √ | 2K |
| LP-MSM014 | 1812 | 0.14 | 0.34 | 60 | 10 | 1.50 | 0.15 | 1.0 | 1.500 | 6.000 | √ | √ | 2K |
| LP-MSM020 | 1812 | 0.20 | 0.40 | 30 | 10 | 6.00 | 0.02 | 1.0 | 0.600 | 5.000 | √ | √ | 2K |
| LP-MSM050 | 1812 | 0.50 | 1.00 | 15 | 40 | 8.00 | 0.15 | 1.0 | 0.150 | 1.000 | √ | √ | 2K |
| LP-MSM050/24 | 1812 | 0.50 | 1.00 | 24 | 40 | 8.00 | 0.15 | 1.0 | 0.150 | 1.000 | × | √ | 2K |
| LP-MSM050/30 | 1812 | 0.50 | 1.00 | 30 | 40 | 8.00 | 0.15 | 1.0 | 0.150 | 1.000 | × | × | 2K |
| LP-MSM050/36 | 1812 | 0.50 | 1.00 | 36 | 40 | 8.00 | 0.15 | 1.0 | 0.150 | 1.000 | × | × | 2K |
| LP-MSM075 | 1812 | 0.75 | 1.50 | 13.2 | 40 | 8.00 | 0.20 | 1.0 | 0.100 | 0.480 | √ | √ | 2K |
| LP-MSM075/24 | 1812 | 0.75 | 1.50 | 24 | 40 | 8.00 | 0.20 | 1.0 | 0.100 | 0.480 | √ | √ | 1K |
| LP-MSM075/33 | 1812 | 0.75 | 1.50 | 33 | 40 | 8.00 | 0.20 | 1.0 | 0.100 | 0.480 | √ | × | 1K |
| LP-MSM110 | 1812 | 1.10 | 2.20 | 6 | 40 | 8.00 | 0.30 | 1.0 | 0.040 | 0.260 | √ | √ | 2K |
| LP-MSM110/8 | 1812 | 1.10 | 2.20 | 8 | 40 | 8.00 | 0.30 | 1.0 | 0.040 | 0.260 | √ | √ | 2K |
| LP-MSM110/16 | 1812 | 1.10 | 2.20 | 16 | 40 | 8.00 | 0.30 | 1.0 | 0.040 | 0.260 | √ | √ | 2K |
| LP-MSM110/24 | 1812 | 1.10 | 2.20 | 24 | 40 | 8.00 | 0.30 | 1.0 | 0.040 | 0.260 | √ | √ | 2K |
| LP-MSM110/33 | 1812 | 1.10 | 2.20 | 33 | 40 | 8.00 | 0.30 | 1.0 | 0.040 | 0.260 | √ | × | 2K |
| LP-MSM125 | 1812 | 1.25 | 2.50 | 6 | 40 | 8.00 | 0.40 | 1.0 | 0.040 | 0.250 | √ | √ | 2K |
| LP-MSM125/16 | 1812 | 1.25 | 2.50 | 16 | 40 | 8.00 | 0.40 | 1.0 | 0.040 | 0.250 | √ | √ | 2K |
| LP-MSM125/24 | 1812 | 1.25 | 2.50 | 24 | 40 | 8.00 | 0.40 | 1.0 | 0.040 | 0.250 | √ | √ | 2K |
| LP-MSM150 | 1812 | 1.50 | 3.00 | 6 | 40 | 8.00 | 0.50 | 1.0 | 0.040 | 0.120 | √ | √ | 2K |
| LP-MSM150/8 | 1812 | 1.50 | 3.00 | 8 | 40 | 8.00 | 0.50 | 1.0 | 0.040 | 0.120 | √ | √ | 2K |
| LP-MSM150/16 | 1812 | 1.50 | 3.00 | 16 | 40 | 8.00 | 0.50 | 1.0 | 0.040 | 0.120 | √ | √ | 1K |
| LP-MSM150/24 | 1812 | 1.50 | 3.00 | 24 | 40 | 8.00 | 0.50 | 1.0 | 0.040 | 0.120 | √ | √ | 3K |
| LP-MSM160 | 1812 | 1.60 | 3.20 | 6 | 40 | 8.00 | 1.00 | 1.0 | 0.030 | 0.100 | √ | √ | 2K |
| LP-MSM160/8 | 1812 | 1.60 | 3.20 | 8 | 40 | 8.00 | 1.00 | 1.0 | 0.030 | 0.100 | √ | √ | 2K |
| LP-MSM160/24 | 1812 | 1.60 | 3.20 | 24 | 40 | 8.00 | 1.00 | 1.0 | 0.030 | 0.100 | × | √ | 1K |
| LP-MSM200 | 1812 | 2.00 | 3.50 | 6 | 40 | 8.00 | 2.00 | 1.0 | 0.020 | 0.075 | √ | √ | 2K |
| LP-MSM200/8 | 1812 | 2.00 | 3.50 | 8 | 40 | 8.00 | 2.00 | 1.0 | 0.020 | 0.075 | √ | √ | 2K |
| LP-MSM200/16 | 1812 | 2.00 | 3.50 | 16 | 40 | 8.00 | 2.00 | 1.0 | 0.020 | 0.075 | √ | √ | 1K |
| LP-MSM260 | 1812 | 2.60 | 5.20 | 6 | 40 | 8.00 | 2.50 | 1.0 | 0.015 | 0.047 | √ | √ | 1K |
| LP-MSM260/12 | 1812 | 2.60 | 5.20 | 12 | 40 | 8.00 | 2.50 | 1.0 | 0.015 | 0.047 | × | × | 1K |
| LP-MSM260/16 | 1812 | 2.60 | 5.20 | 16 | 50 | 13.00 | 5.00 | 1.0 | 0.003 | 0.020 | √ | √ | 2K |
| LP-MSML300/16 | 1812 | 3.00 | 6.00 | 16 | 20 | 15.00 | 5.00 | 1.0 | 0.001 | 0.015 | √ | × | 2K |
| LP-MSML300/24 | 1812 | 3.00 | 6.00 | 24 | 20 | 15.00 | 5.00 | 1.0 | 0.001 | 0.015 | √ | × | 2K |
| LP-SM030 | 2920 | 0.30 | 0.60 | 60 | 10 | 1.50 | 3.00 | 1.9 | 0.700 | 4.800 | √ | √ | 2K |
| LP-SM050 | 2920 | 0.50 | 1.00 | 60 | 10 | 2.50 | 4.00 | 1.9 | 0.350 | 1.400 | × | √ | 2K |
| LP-SM075 | 2920 | 0.75 | 1.50 | 30 | 40 | 8.00 | 0.30 | 1.9 | 0.290 | 1.000 | √ | √ | 2K |
| LP-SM110 | 2920 | 1.10 | 2.20 | 33 | 40 | 8.00 | 0.50 | 1.9 | 0.100 | 0.480 | × | √ | 2K |
| LP-SM125 | 2920 | 1.25 | 2.50 | 15 | 40 | 8.00 | 2.00 | 1.6 | 0.070 | 0.250 | √ | √ | 2K |
| LP-SM260 | 2920 | 2.60 | 5.20 | 6 | 40 | 8.00 | 20.00 | 1.9 | 0.025 | 0.075 | √ | √ | 2K |
| LP-SM300 | 2920 | 3.00 | 6.00 | 6 | 40 | 8.00 | 35.00 | 1.9 | 0.015 | 0.048 | × | √ | 2K |
| LP-SM030C | 2920 | 0.30 | 0.60 | 60 | 10 | 1.50 | 3.00 | 1.9 | 0.700 | 4.800 | × | √ | 6K |
| LP-SM050C | 2920 | 0.50 | 1.00 | 60 | 10 | 2.50 | 4.00 | 1.9 | 0.350 | 1.400 | × | √ | 6K |
| LP-SM075C | 2920 | 0.75 | 1.50 | 30 | 40 | 8.00 | 0.30 | 1.9 | 0.290 | 1.000 | × | √ | 6K |
| LP-SM110C | 2920 | 1.10 | 2.20 | 33 | 40 | 8.00 | 0.50 | 1.9 | 0.100 | 0.480 | × | √ | 6K |
| LP-SM110C/60 | 2920 | 1.10 | 2.20 | 60 | 20 | 8.00 | 0.50 | 1.9 | 0.100 | 0.480 | × | × | 6K |
| LP-SM125C | 2920 | 1.25 | 2.50 | 15 | 40 | 8.00 | 2.00 | 1.6 | 0.070 | 0.250 | × | √ | 6K |
| LP-SM130C | 2920 | 1.30 | 2.60 | 33 | 40 | 8.00 | 4.00 | 2.1 | 0.080 | 0.280 | × | √ | 6K |
| LP-SM150C | 2920 | 1.50 | 3.00 | 33 | 40 | 8.00 | 5.00 | 2.1 | 0.060 | 0.250 | × | √ | 6K |
| LP-SM185C | 2920 | 1.85 | 3.70 | 15 | 40 | 8.00 | 5.00 | 2.1 | 0.045 | 0.165 | × | √ | 6K |
| LP-SM185C/33 | 2920 | 1.85 | 3.70 | 33 | 40 | 8.00 | 5.00 | 2.1 | 0.045 | 0.165 | × | × | 6K |
| LP-SM200C | 2920 | 2.00 | 4.00 | 15 | 40 | 8.00 | 12.00 | 2.1 | 0.045 | 0.125 | × | √ | 6K |
| LP-SM200C/24 | 2920 | 2.00 | 4.00 | 24 | 40 | 8.00 | 12.00 | 2.1 | 0.045 | 0.125 | × | × | 6K |
| LP-SM250C | 2920 | 2.50 | 5.00 | 15 | 40 | 8.00 | 25.00 | 1.9 | 0.025 | 0.085 | × | √ | 6K |
| LP-SM260C | 2920 | 2.60 | 5.20 | 6 | 40 | 8.00 | 20.00 | 1.9 | 0.025 | 0.075 | × | √ | 6K |
| LP-SM260C/24 | 2920 | 2.60 | 5.20 | 24 | 40 | 8.00 | 20.00 | 1.9 | 0.025 | 0.075 | × | × | 6K |
| LP-SM300C | 2920 | 3.00 | 6.00 | 6 | 40 | 8.00 | 35.00 | 1.9 | 0.015 | 0.048 | × | √ | 6K |
| LP-SM300C/16 | 2920 | 3.00 | 6.00 | 16 | 40 | 8.00 | 35.00 | 1.9 | 0.015 | 0.048 | × | × | 6K |
| LP-SM300C/24 | 2920 | 3.00 | 6.00 | 24 | 40 | 8.00 | 35.00 | 1.9 | 0.015 | 0.048 | × | × | 6K |
