WAYON維安代理商|中低壓MOS管 WMB080N10L同步整流管 應用于20W快充

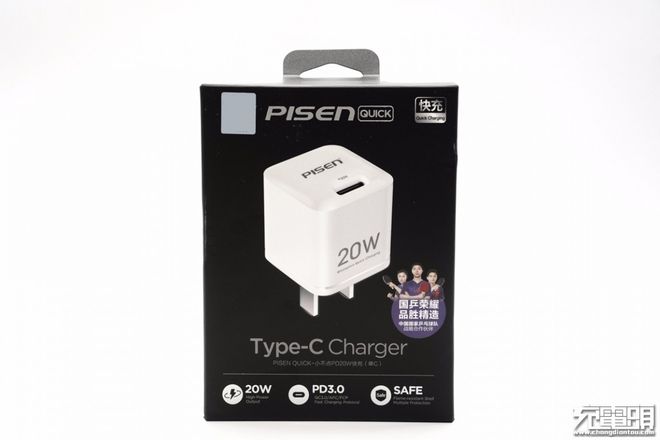

PISEN品勝近期又推出了20W迷你快充充電器，滿足消費者對小體積20W充電器的需求。這款產品有單C口和1A1C雙口兩種款式，經過拆解，發現內置維安WMB080N10LG2同步整流管等器件。

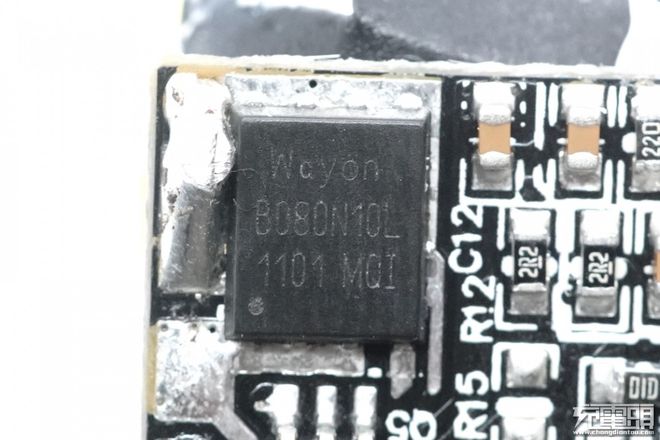

次級同步整流MOS管采用維安WMB080N10LG2，耐壓100V，導阻＜10.5mΩ，適用于DC-DC和同步整流應用。

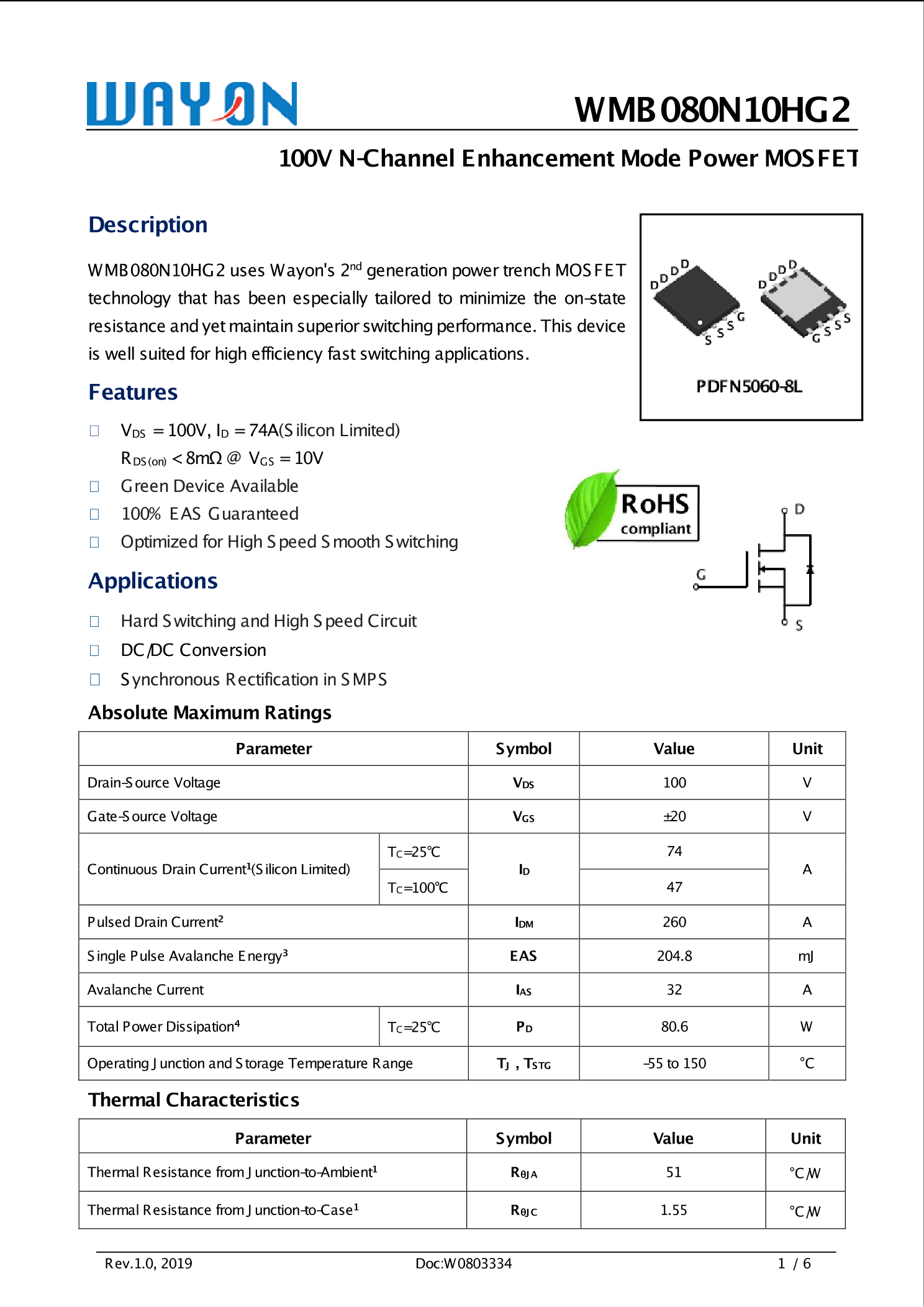

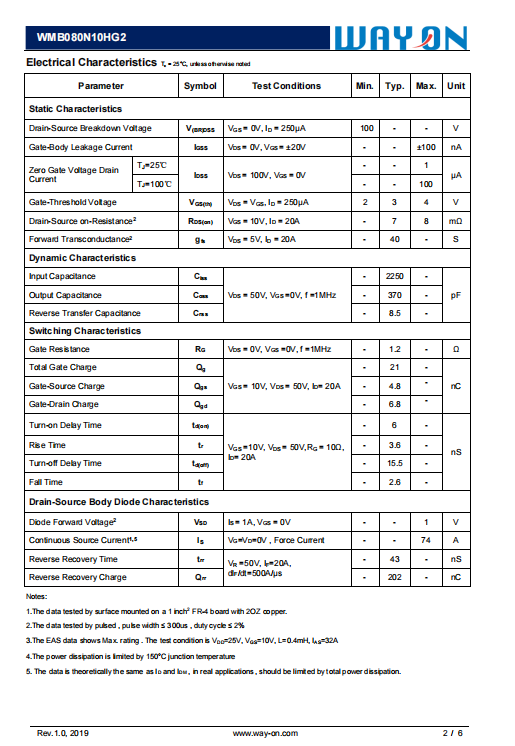

Wayon維安WMB080N10LG2 PDF文檔資料：
100V N-Channel Enhancement Mode Power MOSFET
Description
WMB080N10HG2 uses Wayon's 2nd generation power trench MOSFET technology that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance. This device is well suited for high efficiency fast switching applications.
Features ? VDS = 100V, ID = 74A(Silicon Limited) RDS(on) < 8mΩ @ VGS = 10V ? Green Device Available ? 100% EAS Guaranteed ? Optimized for High Speed Smooth Switching
Applications ? Hard Switching and High Speed Circuit ? DC/DC Conversion ? Synchronous Rectification in SMPS
