Wayon維安新品推薦|36V OVP過電壓保護IC|Over-Voltage Protection lC WP1432

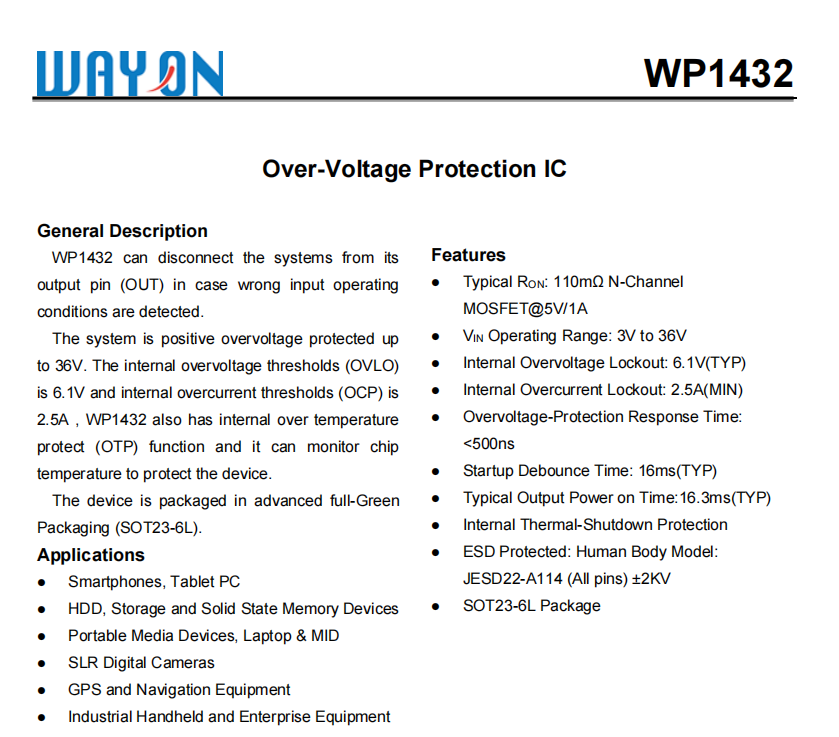

WP1432 can disconnect the systems from itsoutput pin(OUT) in case wrong input operatingconditions are detected.
如果檢測到錯誤的輸入操作條件，WP 1432可以斷開系統與其輸出引腳(OUT)的連接。
The system is positive overvoltage protected upto 36V.The internal overvoltage thresholds (OVLO)is 6.1V and internal overcurrent thresholds (OCP) is2.5A ，WP1432 also has internal over temperatureprotect (OTP) function and it can monitor chiptemperature to protect the device.
系統正過電壓保護可達36V，內部過電壓閾值(OVLO)為6.1V，內過流閾值(OCP)為2.5A，WP 1432還具有內部過溫保護(OTP)功能，并可對芯片溫度進行監控以保護器件。

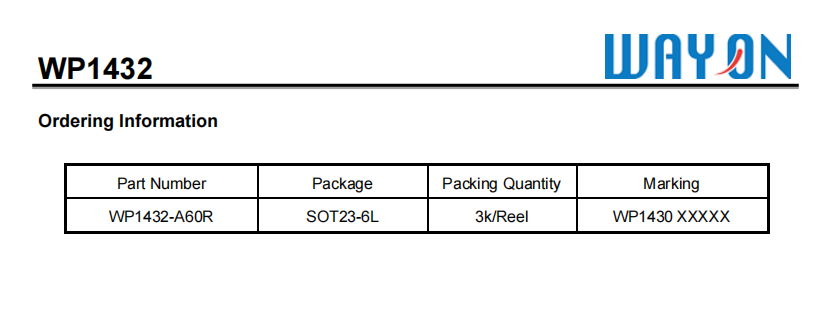

The device is packaged in advanced full-GreenPackaging (SOT23-6L).
該設備封裝在先進的全綠色包裝(SOT23-6L)。
Applications
應用
Smartphones,Tablet PC·
平板電腦智能手機.
HDD, Storage and Solid State Memory DevicesPortable Media Devices, Laptop & MID
GB/T1485.2-1993硬盤、存儲和固態存儲設備便攜式媒體設備、筆記本電腦和中間設備
SLR Digital Cameras
單反數碼相機
GPs and Navigation Equipment
GPS和導航設備
Industrial Handheld and Enterprise Equipment
工業手持設備和企業設備
