發力新基建，Wayon維安半導體推出國內16.5mΩ超低內阻超結MOSFET WMJ120N60CM
時間：2022-11-29 發布人：京柏微 點擊量：
受益于國家對新基建項目的重視，新能源電動汽車充電樁和5G基站建設速度迅猛。應新能源汽車?yán)m(xù)航里程提升和快速充電的要求，充電樁的功率已高達120KW到180KW。同樣，5G領域也很講求功率的高效性，5G基站單站滿載功率近3700W，約為4G基站的2.5~3.5倍，電費亦會隨之攀升至3G、4G的4~5倍之大。面對這些用電大戶，耗電問題將是5G時代運營商無法回避的問題。降低能耗，提升電源效率，是選擇功率半導體器件時的主要考慮因素。目前，功率MOSFET中TO-247封裝是充電機、充電樁和基站高功率電源模塊應用中最通用的封裝形式。針對超低內阻的高壓MOS產品需求，在常規TO-247封裝不能滿足的情況下，電源工程師往往會使用諸如TO-247MAX,、TO-3P(L) 、TO-264、PLUS TO-247等超大體積封裝來代替。這種超大封裝不僅不通用，且成本較高。 順應趨勢，維安經過多年的SJ-MOS技術研發創新，開發出行業內超低導通電阻產品——WMJ120N60CM，采用常規 TO-247封裝的600V高壓SJ-MOS，導通電阻Rdson低至16.5mΩ，能夠有效提升電源功率密度，解決應用痛點。
圖1：常規TO-247 封裝示意圖
圖2：常規TO-247導通電阻Rdson 對比

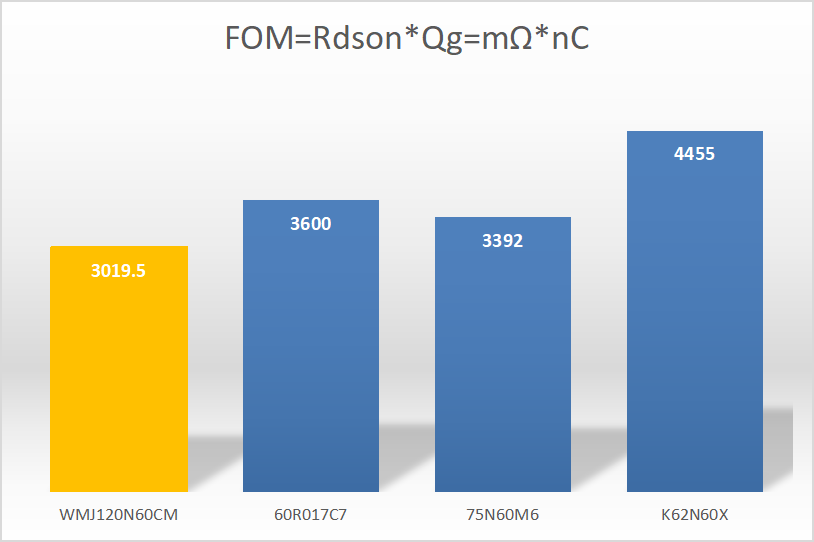

圖3：常規TO-247 品質因數FOM對比
在品質因數FOM（Rdson*Qg）方面，WMJ120N60CM達到業界領先水平。
在3.3KW PFC模塊電路測試中，WMJ120N60CM和行業某知名廠商的65R019C7效率幾乎無差異，甚至比60R019C7高出0.15~0.34%; 對應的輸入功耗小了1~4W。
WMJ120N60CM具有業內領先的導通電阻Rdson，且是TO-247通用封裝，在有效提升電源功率密度的同時又節省了空間。目前此款產品主要面向高功率電源模塊，比如新能源汽車地面充電樁模塊電源，通信電源和高功率充電機等行業，在減少成本費用的情況下實現高效，加速新基建全面落地。
| Part No. | Package | Configuration | Type | ESD | VDS | Vgs Max | ID at 25℃ | VGS(th) | Rds(on) | Ciss | Coss | Crss | |
| Typ. | Vgs=10V | Vgs=4.5V | |||||||||||
| V | V | A(Max.) | V | mΩ(Max.) | mΩ(Max.) | pF(Typ.) | pF(Typ.) | pF(Typ.) | |||||
| 12V-100V Trench P Channel Power MOSFET | |||||||||||||
| WM01P75R | DFN2*2-6L | Single | P | NO | -12 | ±8 | -7.5 | -0.65 | / | 26 | 1260 | 400 | 350 |
| WM02P160R | DFN2*2-6L | Single | P | NO | -20 | ±10 | -16 | -0.65 | / | 17 | 2895 | 303 | 280 |
| WMQ55P02T1 | PDFN3*3-8L | Single | P | NO | -20 | ±10 | -55 | -0.65 | / | 8.2 | 3140 | 603 | 565 |
| WMS15P02T1 | SOP-8L | Single | P | NO | -20 | ±10 | -15 | -0.65 | / | 8.2 | 3138 | 602 | 565 |
| WMQ55P03T1 | PDFN3*3-8L | Single | P | NO | -30 | ±20 | -55 | -1.5 | 8.5 | 12.8 | 4180 | 520 | 435 |
| WMB60P03T1 | PDFN5*6-8L | Single | P | NO | -30 | ±20 | -60 | -1.5 | 8.8 | 14 | 4320 | 529 | 487 |
| WMS16P03T1 | SOP-8L | Single | P | NO | -30 | ±20 | -16 | -1.5 | 8.8 | 13 | 4180 | 525 | 430 |
| WMQ50P03T1 | PDFN3*3-8L | Single | P | NO | -30 | ±20 | -50 | -1.5 | 9 | 14 | 3958 | 440 | 341 |
| WMS14P03T1 | SOP-8L | Single | P | NO | -30 | ±20 | -14 | -1.5 | 9.2 | 14 | 3448 | 445 | 325 |
| WMQ42P03T1 | PDFN3*3-8L | Single | P | NO | -30 | ±20 | -42 | -1.5 | 14 | 22 | 2500 | 280 | 220 |
| WMS09DP03T1 | SOP-8L | Dual | P | NO | -30 | ±20 | -9 | -1.5 | 14 | 22 | 2500 | 280 | 220 |
| WMO50P03T1 | TO-252 | Single | P | NO | -30 | ±20 | -50 | -1.5 | 14 | 22 | 2500 | 280 | 220 |
| WMS12P03T1 | SOP-8L | Single | P | NO | -30 | ±20 | -11.5 | -1.5 | 15 | 25 | 2335 | 280 | 219 |
| WM03P115R | DFN2*2-6L | Single | P | NO | -30 | ±20 | -11.5 | -1.5 | 24 | 34 | 1510 | 190 | 146 |
| WMQ30P03T1 | PDFN3*3-8L | Single | P | NO | -30 | ±20 | -30 | -1.5 | 24 | 35 | 1405 | 177 | 147 |
| WMQ30P04T1 | PDFN3*3-8L | Single | P | NO | -40 | ±20 | -30 | -1.6 | 13 | 20 | 3597 | 316 | 249 |
| WMS13P04T1 | SOP-8L | Single | P | NO | -40 | ±20 | -13 | -1.6 | 13 | 20 | 3430 | 292 | 225 |
| WMO50P04T1 | TO-252 | Single | P | NO | -40 | ±20 | -50 | -1.6 | 13 | 20 | 3320 | 290 | 225 |
| WMQ25P06T1 | PDFN3*3-8L | Single | P | NO | -60 | ±20 | 25 | -1.5 | 28 | 35 | 3135 | 200 | 121 |
| WMO35P06T1 | TO-252 | Single | P | NO | -60 | ±20 | -35 | -1.5 | 28 | 35 | 3135 | 200 | 121 |
| WMO25P06T1 | TO-252 | Single | P | NO | -60 | ±20 | -25 | -1.8 | 40 | 55 | 1098 | 322 | 59 |
| WMO13P06T1 | TO-252 | Single | P | NO | -60 | ±20 | -13 | -1.6 | 90 | 128 | 1015 | 50 | 35 |
| WMS05P06T1 | SOP-8L | Single | P | NO | -60 | ±20 | -4.5 | -1.6 | 90 | 128 | 1015 | 50 | 35 |
| WMQ12P10T1 | PDFN3*3-8L | Single | P | NO | -100 | ±20 | 12 | -1.7 | 100 | 120 | 3182 | 296 | 189 |
| WMO18P10T1 | TO-252 | Single | P | NO | -100 | ±20 | -18 | -1.8 | 110 | 135 | 1050 | 104 | 9.5 |
| 20V-250V Trench N Channel Power MOSFET | |||||||||||||
| WMR15N02T1 | DFN2*2-6L | Single | N | NO | 20 | ±10 | 15 | 0.65 | / | 8.2 | 2445 | 426 | 202 |
| WMR09N02T1 | DFN2*2-6L | Single | N | NO | 20 | ±10 | 9 | 0.65 | / | 22 | 850 | 140 | 105 |
| WMQ30N02T1 | PDFN3*3-8L | Single | N | NO | 20 | ±10 | 30 | 0.65 | / | 4.5 | 3850 | 490 | 440 |
| WMO90N02T1 | TO-252 | Single | N | NO | 20 | ±10 | 90 | 0.65 | / | 4.5 | 3850 | 490 | 440 |
| WMO60N02T1 | TO-252 | Single | N | NO | 20 | ±10 | 60 | 0.65 | / | 6 | 2280 | 300 | 270 |
| WM02DN080C | DFN2*3-6L | Dual | N | YES | 20 | ±12 | 8 | 0.62 | / | 16 | 730 | 85 | 80 |
| WM02DN085C | DFN2*3-6L | Dual | N | YES | 20 | ±12 | 8.5 | 0.62 | / | 10.9 | 1612 | 162 | 140 |
| WM02DN095C | DFN2*3-6L | Dual | N | YES | 20 | ±12 | 9.5 | 0.62 | / | 9.4 | 1647 | 170 | 150 |
| WM02DN110C | DFN2*3-6L | Dual | N | YES | 20 | ±12 | 11 | 0.62 | / | 7.5 | 1767 | 184 | 155 |
| WM02DN560Q | DFN3*3-8L | Dual | N | YES | 20 | ±8 | 56 | 0.55 | / | 5.8 | 3165 | 380 | 325 |
| WMB90N03T1 | PDFN5*6-8L | Single | N | NO | 30 | ±20 | 90 | 1.5 | 3 | 6 | 3300 | 505 | 420 |
| WMK180N03T1 | TO-220 | Single | N | NO | 30 | ±20 | 180 | 1.5 | 3.2 | 6 | 3570 | 510 | 431 |
| WMO150N03T1 | TO-252 | Single | N | NO | 30 | ±20 | 150 | 1.5 | 3.2 | 6 | 3570 | 510 | 431 |
| WMM180N03T1 | TO-263 | Single | N | NO | 30 | ±20 | 180 | 1.5 | 3.2 | 6 | 3570 | 510 | 431 |
| WMQ45N03T1 | PDFN3*3-8L | Single | N | YES | 30 | ±20 | 45 | 1.5 | 3.8 | 5.8 | 2550 | 495 | 271 |
| WMQ80N03T1 | PDFN3*3-8L | Single | N | NO | 30 | ±20 | 80 | 1.5 | 4 | 6 | 2808 | 420 | 297 |
| WMB108N03T1 | PDFN5*6-8L | Single | N | NO | 30 | ±20 | 108 | 1.5 | 4 | 6 | 3075 | 400 | 315 |
| WMS15N03T1 | SOP-8L | Single | N | NO | 30 | ±20 | 15 | 1.5 | 4 | 6 | 2808 | 420 | 297 |
| WMO96N03T1 | TO-252 | Single | N | NO | 30 | ±20 | 96 | 1.5 | 4 | 6 | 3000 | 410 | 285 |
| WMR16N03T1 | DFN2*2-6L | Single | N | NO | 30 | ±20 | 16 | 1.5 | 5.2 | 7.2 | 2390 | 282 | 230 |
| WMR15N03T1 | DFN2*2-6L | Single | N | NO | 30 | ±20 | 15 | 1.8 | 5.2 | 8.5 | 1100 | 435 | 57 |
| WMQ40N03T1 | PDFN3*3-8L | Single | N | NO | 30 | ±20 | 40 | 1.5 | 5.5 | 9 | 1895 | 267 | 192 |
| WMB81N03T1 | PDFN5*6-8L | Single | N | NO | 30 | ±20 | 81 | 1.5 | 5.5 | 9 | 1880 | 267 | 185 |
| WMO80N03T1 | TO-252 | Single | N | NO | 30 | ±20 | 80 | 1.5 | 5.5 | 9 | 1860 | 267 | 180 |
| WMS13N03T1 | SOP-8L | Single | N | NO | 30 | ±20 | 13 | 1.5 | 6 | 9 | 1846 | 267 | 190 |
| WMK75N03T1 | TO-220 | Single | N | NO | 30 | ±20 | 75 | 1.5 | 6 | 9 | 1895 | 267 | 192 |
| WMR14N03T1 | DFN2*2-6L | Single | N | NO | 30 | ±20 | 14 | 1.5 | 6.8 | 10 | 1650 | 223 | 185 |
| WMR13N03T1 | DFN2*2-6L | Single | N | NO | 30 | ±20 | 12.5 | 0.75 | 9 | 12 | 1035 | 179 | 154 |
| WMR12N03T1 | DFN2*2-6L | Single | N | NO | 30 | ±20 | 12 | 1.5 | 8 | 12 | 1035 | 179 | 154 |
| WMQ46N03T1 | PDFN3*3-8L | Single | N | NO | 30 | ±20 | 46 | 1.5 | 8.5 | 13 | 1105 | 163 | 131 |
| WMB58N03T1 | PDFN5*6-8L | Single | N | NO | 30 | ±20 | 58 | 1.5 | 8.5 | 14 | 1100 | 163 | 131 |
| WMO55N03T1 | TO-252 | Single | N | NO | 30 | ±20 | 55 | 1.5 | 8.5 | 12.5 | 1107 | 163 | 115 |
| WMR10N03T1 | DFN2*2-6L | Single | N | NO | 30 | ±20 | 10 | 1.5 | 12 | 16.5 | 896 | 126 | 108 |
| WMQ37N03T1 | PDFN3*3-8L | Single | N | NO | 30 | ±20 | 37 | 1.5 | 12 | 16.5 | 830 | 126 | 85 |
| WMQ36DN03T1 | PDFN3*3-8L | Dual | N | NO | 30 | ±20 | 36 | 1.5 | 12 | 16.5 | 830 | 126 | 85 |
| WMB46N03T1 | PDFN5*6-8L | Single | N | NO | 30 | ±20 | 46 | 1.7 | 12 | 16.5 | 832 | 125 | 84 |
| WMS11N03T1 | SOP-8L | Single | N | NO | 30 | ±20 | 11 | 1.75 | 12 | 17 | 932 | 128 | 105 |
| WM03N115A | SOP-8L | Single | N | NO | 30 | ±20 | 11.5 | 1.5 | 12 | 16 | 1140 | 165 | 110 |
| WMR07N03T1 | DFN2*2-6L | Single | N | NO | 30 | ±20 | 7 | 1.5 | 18 | 30 | 500 | 75 | 51 |
| WMQ28N03T1 | PDFN3*3-8L | Single | N | NO | 30 | ±20 | 28 | 1.5 | 18 | 30 | 500 | 75 | 51 |
| WMS10DN03T1 | SOP-8L | Dual | N | NO | 30 | ±20 | 10 | 1.5 | 18 | 30 | 500 | 75 | 51 |
| WM03N105A | SOP-8L | Single | N | NO | 30 | ±20 | 10.5 | 1.5 | 23 | 32 | 500 | 75 | 51 |
| WMB116N04T1 | PDFN5*6-8L | Single | N | NO | 40 | ±20 | 116 | 2 | 2.5 | 3.5 | 5920 | 690 | 520 |
| WMO150N04T1 | TO-252 | Single | N | NO | 40 | ±20 | 150 | 1.5 | 3.5 | 4.8 | 5850 | 648 | 485 |
| WMK188N04T1 | TO-220 | Single | N | NO | 40 | ±20 | 188 | 2 | 3.5 | 4.8 | 5850 | 648 | 485 |
| WMQ55N04T1 | PDFN3*3-8L | Single | N | NO | 40 | ±20 | 55 | 1.5 | 6.5 | 8.8 | 3310 | 280 | 209 |
| WMB70N04T1 | PDFN5*6-8L | Single | N | NO | 40 | ±20 | 70 | 1.5 | 6.5 | 8.5 | 3260 | 245 | 185 |
| WMK80N04T1 | TO-220 | Single | N | NO | 40 | ±20 | 80 | 1.7 | 7 | 12 | 2400 | 192 | 160 |
| WMO75N04T1 | TO-252 | Single | N | NO | 40 | ±20 | 75 | 1.5 | 6.5 | 8.8 | 3310 | 280 | 209 |
| WMQ50N04T1 | PDFN3*3-8L | Single | N | NO | 40 | ±20 | 50 | 1.7 | 7.2 | 12 | 2400 | 192 | 160 |
| WMB56N04T1 | PDFN5*6-8L | Single | N | NO | 40 | ±20 | 56 | 1.7 | 7.2 | 12 | 2370 | 190 | 162 |
| WMO60N04T1 | TO-252 | Single | N | NO | 40 | ±20 | 60 | 1.7 | 7.2 | 12 | 2400 | 192 | 160 |
| WMQ30N04T1 | PDFN3*3-8L | Single | N | NO | 40 | ±20 | 30 | 1.5 | 11.5 | 16.5 | 1258 | 106 | 80 |
| WMB116N06T1 | PDFN5*6-8L | Single | N | NO | 60 | ±20 | 116 | 1.8 | 5.2 | 7 | 5323 | 400 | 325 |
| WMS18N06T1 | SOP-8L | Single | N | NO | 60 | ±20 | 18 | 1.8 | 6.5 | 8.5 | 5300 | 320 | 245 |
| WMO105N06T1 | TO-252 | Single | N | NO | 60 | ±20 | 105 | 1.8 | 6.5 | 8.5 | 5300 | 400 | 325 |
| WMO70N06T1 | TO-252 | Single | N | NO | 60 | ±20 | 70 | 3 | 7.4 | / | 2610 | 881 | 290 |
| WMB75N06T1 | PDFN5*6-8L | Single | N | NO | 60 | ±20 | 75 | 1.8 | 8.5 | 12 | 3307 | 201 | 151 |
| WMS13N06T1 | SOP-8L | Single | N | NO | 60 | ±20 | 13 | 1.8 | 8.5 | 12 | 3307 | 201 | 151 |
| WMO80N06T1 | TO-252 | Single | N | NO | 60 | ±20 | 80 | 3 | 8.5 | / | 3200 | 310 | 292 |
| WMQ44N06T1 | PDFN3*3-8L | Single | N | NO | 60 | ±20 | 44 | 1.8 | 12 | 15 | 2750 | 210 | 146 |
| WMB52N06T1 | PDFN5*6-8L | Single | N | NO | 60 | ±20 | 52 | 1.8 | 12 | 15 | 2750 | 210 | 146 |
| WMS10N06T1 | SOP-8L | Single | N | NO | 60 | ±20 | 10 | 1.8 | 12 | 15 | 2600 | 205 | 150 |
| WMO40N06T1 | TO-252 | Single | N | NO | 60 | ±20 | 40 | 1.8 | 21 | 24 | 2060 | 130 | 98 |
| WMO20N06T1 | TO-252 | Single | N | NO | 60 | ±20 | 20 | 1.8 | 46 | 52 | 927 | 62 | 47 |
| WMS05N06T1 | SOP-8L | Single | N | NO | 60 | ±20 | 4.5 | 1.8 | 46 | 52 | 998 | 61 | 45 |
| WMO17N06T1 | TO-252 | Single | N | NO | 60 | ±20 | 17 | 1.8 | 75 | 90 | 600 | 38.5 | 28 |
| WMQ35N07T1 | PDFN3*3-8L | Single | N | NO | 65 | ±20 | 35 | 1.8 | 21 | 24 | 2050 | 130 | 98 |
| WMB64N10T1 | PDFN5*6-8L | Single | N | NO | 100 | ±20 | 64 | 1.8 | 14 | 16.7 | 4500 | 225 | 170 |
| WMS11N10T1 | SOP-8L | Single | N | NO | 100 | ±20 | 11 | 1.8 | 15 | 17 | 4720 | 228 | 172 |
| WMS08N10T1 | SOP-8L | Single | N | NO | 100 | ±20 | 8 | 1.8 | 24 | 28 | 3440 | 145 | 110 |
| WMK28N10T1 | TO-220 | Single | N | NO | 100 | ±20 | 28 | 2 | 47 | 50 | 2217 | 147 | 98 |
| WMO28N10T1 | TO-252 | Single | N | NO | 100 | ±20 | 28 | 2 | 47 | 50 | 2217 | 147 | 98 |
| WMQ12N10T1 | PDFN3*3-8L | Single | N | NO | 100 | ±20 | 12.5 | 2 | 65 | 90 | 542 | 45 | 21 |
| WMO14N10T1 | TO-252 | Single | N | NO | 100 | ±20 | 14 | 2 | 66 | 85 | 560 | 63 | 27 |
| WMT05N10T1 | SOT-223 | Single | N | NO | 100 | ±20 | 5 | 2 | 100 | 110 | 1061 | 55 | 40 |
| WMK16N10T1 | TO-220 | Single | N | NO | 100 | ±20 | 15.8 | 2 | 100 | 110 | 1100 | 55 | 40 |
| WMO15N10T1 | TO-252 | Single | N | NO | 100 | ±20 | 14.6 | 2 | 100 | 110 | 1100 | 55 | 40 |
| WMO09N10T1 | TO-252 | Single | N | NO | 100 | ±20 | 9 | 2 | 160 | 170 | 1077 | 46 | 32 |
| WMT04N15T1 | SOT-223 | Single | N | NO | 150 | ±20 | 4 | 2 | 160 | / | 1130 | 53 | 37 |
| WMO15N15T1 | TO-252 | Single | N | NO | 150 | ±20 | 15 | 2 | 170 | / | 1130 | 53 | 37 |
| WMO09N15T1 | TO-252 | Single | N | NO | 150 | ±20 | 8.6 | 2 | 325 | / | 223 | 23 | 14 |
| WMO18N20T1 | TO-252 | Single | N | NO | 200 | ±20 | 18 | 2 | 170 | 180 | 2370 | 95 | 65 |
| 30V-250V SGT N Channel Power MOSFET | |||||||||||||
| WMB017N03LG2 | PDFN5*6-8L | Single | N | NO | 30 | ±20 | 100 | 1.6 | 1.7 | 2.5 | 3500 | 1800 | 240 |
| WMQ023N03LG2 | PDFN3*3-8L | Single | N | NO | 30 | ±20 | 75 | 1.6 | 3 | 4.5 | 2670 | 1480 | 158 |
| WMB023N03LG2 | PDFN5*6-8L | Single | N | NO | 30 | ±20 | 83 | 1.6 | 2.3 | 3.6 | 2670 | 1480 | 158 |
| WMQ040N03LG2 | PDFN3*3-8L | Single | N | NO | 30 | ±20 | 36 | 1.6 | 4 | 6.2 | 1390 | 680 | 53 |
| WMB040N03LG2 | PDFN5*6-8L | Single | N | NO | 30 | ±20 | 58 | 1.6 | 4 | 6.2 | 1390 | 680 | 53 |
| WMB042DN03LG2 | PDFN5*6-8L | Dual | N | NO | 30 | ±20 | 50 | 1.6 | 4.2 | 6.5 | 1390 | 680 | 53 |
| NO | 30 | ±20 | 45 | 1.6 | 5.5 | 9 | 1100 | 430 | 60 | ||||
| WMQ052N03LG2 | PDFN3*3-8L | Single | N | NO | 30 | ±20 | 32 | 1.6 | 5.2 | 9 | 1100 | 435 | 57 |
| WMB052N03LG2 | PDFN5*6-8L | Single | N | NO | 30 | ±20 | 50 | 1.6 | 5.2 | 8.8 | 1100 | 435 | 57 |
| WMQ30N03T2 | PDFN3*3-8L | Single | N | NO | 30 | ±20 | 30 | 1.6 | 6.3 | 9.5 | 770 | 398 | 62 |
| WMB52N03T2 | PDFN5*6-8L | Single | N | NO | 30 | ±20 | 52 | 1.6 | 6.3 | 9 | 850 | 400 | 60 |
| WMQ080N03LG2 | PDFN3*3-8L | Single | N | NO | 30 | ±20 | 28 | 1.6 | 8 | 12 | 690 | 335 | 32 |
| WMB080N03LG2 | PDFN5*6-8L | Single | N | NO | 30 | ±20 | 42 | 1.6 | 8 | 12 | 690 | 335 | 32 |
| WMQ098N03LG2 | PDFN3*3-8L | Single | N | NO | 30 | ±20 | 26 | 1.6 | 9.8 | 15.6 | 570 | 250 | 27.5 |
| WMB098N03LG2 | PDFN5*6-8L | Single | N | NO | 30 | ±20 | 38 | 1.6 | 9.8 | 15.6 | 570 | 250 | 27.5 |
| WMB018N04LG2 | PDFN5*6-8L | Single | N | NO | 40 | ±20 | 140 | 1.7 | 1.8 | 2.6 | 3570 | 1050 | 115 |
| WMS032N04LG2 | SOP-8L | Single | N | NO | 40 | ±20 | 22 | 1.7 | 3.2 | 5.2 | 2705 | 960 | 55 |
| WMQ032N04LG2 | PDFN3*3-8L | Single | N | NO | 40 | ±20 | 70 | 1.7 | 3.4 | 5.5 | 2705 | 960 | 55 |
| WMB032N04LG2 | PDFN5*6-8L | Single | N | NO | 40 | ±20 | 90 | 1.7 | 3.2 | 5.2 | 2705 | 960 | 55 |
| WMQ050N04LG2 | PDFN3*3-8L | Single | N | NO | 40 | ±20 | 60 | 1.7 | 5 | 8 | 2111 | 708 | 50 |
| WMQ090N04LG2 | PDFN3*3-8L | Single | N | NO | 40 | ±20 | 40 | 1.7 | 9 | 12.5 | 788 | 305 | 62 |
| WMB090N04LG2 | PDFN5*6-8L | Single | N | NO | 40 | ±20 | 50 | 1.7 | 8.5 | 12 | 788 | 305 | 62 |
| WMS090N04LG2 | SOP-8L | Single | N | NO | 40 | ±20 | 14 | 1.6 | 9 | 15 | 788 | 305 | 62 |
| WMB025N06LG2 | PDFN5*6-8L | Single | N | NO | 60 | ±20 | 160 | 1.7 | 2.8 | 3.8 | 4390 | 1250 | 65 |
| WMK025N06LG2 | TO-220 | Single | N | NO | 60 | ±20 | 200 | 1.7 | 2.8 | 3.8 | 6105 | 1128 | 75 |
| WMB025N06HG2 | PDFN5*6-8L | Single | N | NO | 60 | ±20 | 160 | 2.8 | 2.8 | / | 4683 | 1192 | 69 |
| WML025N06HG2 | TO-220F | Single | N | NO | 60 | ±20 | 180 | 2.8 | 2.8 | / | 4683 | 1192 | 69 |
| WMK025N06HG2 | TO-220 | Single | N | NO | 60 | ±20 | 200 | 3 | 2.8 | / | 4683 | 1192 | 69 |
| WMB85N06T2 | PDFN5*6-8L | Single | N | NO | 60 | ±20 | 85 | 1.7 | 3.6 | 5.4 | 3550 | 1226 | 78 |
| WMO036N06LG2 | TO-252 | Single | N | NO | 60 | ±20 | 82 | 1.7 | 4.5 | 6 | 3550 | 1126 | 80 |
| WMS082N06LG2 | SOP-8L | Single | N | NO | 60 | ±20 | 15 | 1.7 | 9 | 13 | 1650 | 455 | 13 |
| WMB082N06LG2 | PDFN5*6-8L | Single | N | NO | 60 | ±20 | 52 | 1.7 | 8.2 | 12 | 1650 | 455 | 13.5 |
| WMS091N06LG2 | SOP-8L | Single | N | NO | 60 | ±20 | 14 | 1.7 | 9.1 | 13 | 1625 | 412 | 2.9 |
| WMQ091N06LG2 | PDFN3*3-8L | Single | N | NO | 60 | ±20 | 45 | 1.7 | 9.1 | 13 | 1625 | 412 | 2.9 |
| WMB091N06LG2 | PDFN5*6-8L | Single | N | NO | 60 | ±20 | 62 | 1.7 | 9.1 | 13 | 1625 | 412 | 2.9 |
| WMS098N06LG2 | SOP-8L | Single | N | NO | 60 | ±20 | 13 | 1.7 | 9.8 | 14.5 | 1055 | 430 | 22 |
| WMQ098N06LG2 | PDFN3*3-8L | Single | N | NO | 60 | ±20 | 42 | 1.7 | 9.8 | 14.5 | 1055 | 430 | 22 |
| WMB098N06LG2 | PDFN5*6-8L | Single | N | NO | 60 | ±20 | 57 | 1.7 | 9.8 | 14.5 | 1055 | 430 | 22 |
| WMS098DN06LG2 | SOP-8L | Dual | N | NO | 60 | ±20 | 13 | 1.7 | 9.8 | 15 | 1055 | 430 | 22 |
| WMS048NV6LG2 | SOP-8L | Single | N | NO | 65 | ±20 | 17.5 | 1.7 | 5.5 | 7.6 | 1900 | 785 | 50 |
| WMQ048NV6LG2 | PDFN3*3-8L | Single | N | NO | 65 | ±20 | 60 | 1.7 | 5.5 | 7.6 | 1995 | 785 | 51 |
| WMB048NV6LG2 | PDFN5*6-8L | Single | N | NO | 65 | ±20 | 95 | 1.7 | 4.8 | 7 | 1995 | 785 | 51 |
| WMQ048NV6HG2 | PDFN3*3-8L | Single | N | NO | 65 | ±20 | 60 | 3 | 5 | / | 2068 | 934 | 45 |
| WMS048NV6HG2 | SOP-8L | Single | N | NO | 65 | ±20 | 17.5 | 3 | 5 | / | 2068 | 934 | 45 |
| WMB048NV6HG2 | PDFN5*6-8L | Single | N | NO | 65 | ±20 | 95 | 3 | 5 | / | 2068 | 934 | 45 |
| WMM050NV6HG2 | TO-263 | Single | N | NO | 65 | ±20 | 150 | 3 | 5 | / | 2368 | 1034 | 45 |
| WMS090NV6LG2 | SOP-8L | Single | N | NO | 65 | ±20 | 14 | 1.7 | 9 | 13 | 1223 | 490 | 22 |
| WMQ090NV6LG2 | PDFN3*3-8L | Single | N | NO | 65 | ±20 | 45 | 1.7 | 9 | 13 | 1223 | 490 | 22 |
| WMB090NV6LG2 | PDFN5*6-8L | Single | N | NO | 65 | ±20 | 62 | 1.7 | 9 | 13 | 1223 | 490 | 22 |
| WMB036N08HG3 | PDFN5*6-8L | Single | N | NO | 80 | ±20 | 120 | 3 | 3.6 | / | 4520 | 681 | 37 |
| WMB037N08HG2 | PDFN5*6-8L | Single | N | NO | 80 | ±20 | 135 | 3 | 3.7 | / | 3190 | 1498 | 94 |
| WMM037N08HG2 | TO-263 | Single | N | NO | 80 | ±20 | 192 | 3 | 3.8 | / | 3648 | 1280 | 76 |
| WMK037N08HG2 | TO-220 | Single | N | NO | 80 | ±20 | 190 | 3 | 3.9 | / | 3648 | 1280 | 76 |
| WMQ060N08LG2 | PDFN3*3-8L | Single | N | NO | 80 | ±20 | 58 | 1.7 | 6 | 9.2 | 2165 | 545 | 18 |
| WMB060N08LG2 | PDFN5*6-8L | Single | N | NO | 80 | ±20 | 98 | 1.7 | 6 | 8.2 | 2155 | 482 | 23 |
| WMB060N08HG2 | PDFN5*6-8L | Single | N | NO | 80 | ±20 | 82 | 3 | 6 | / | 2422 | 428 | 15 |
| WMK060N08HG2 | TO-220 | Single | N | NO | 80 | ±20 | 95 | 3 | 6 | / | 2450 | 500 | 20 |
| WMO060N08HG2 | TO-252 | Single | N | NO | 80 | ±20 | 88 | 3 | 6 | / | 2422 | 428 | 15 |
| WMM060N08HG2 | TO-263 | Single | N | NO | 80 | ±20 | 95 | 3 | 6 | / | 2450 | 500 | 20 |
| WMS18N08T2 | SOP-8L | Single | N | NO | 80 | ±20 | 17.5 | 1.7 | 7 | 9 | 3045 | 832 | 38 |
| WMB48N08T2 | PDFN5*6-8L | Single | N | NO | 80 | ±20 | 48 | 1.7 | 6.5 | 9 | 3045 | 812 | 38 |
| WMK028N10HG2 | TO-220 | Single | N | NO | 100 | ±20 | 245 | 3 | 2.8 | / | 7450 | 145 | 32 |
| WMM028N10HG2 | TO-263 | Single | N | NO | 100 | ±20 | 245 | 3 | 2.8 | / | 7450 | 145 | 32 |
| WMB129N10T2 | PDFN5*6-8L | Single | N | NO | 100 | ±20 | 129 | 1.7 | 4.2 | 6 | 3875 | 920 | 41 |
| WMB128N10T2 | PDFN5*6-8L | Single | N | NO | 100 | ±20 | 128 | 3 | 4.2 | / | 3745 | 934 | 32 |
| WMM166N10T2 | TO-263 | Single | N | NO | 100 | ±20 | 166 | 3 | 4.2 | / | 3642 | 879 | 41 |
| WMK043N10LG2 | TO-220 | Single | N | NO | 100 | ±20 | 166 | 1.7 | 4.3 | 6 | 3875 | 920 | 41 |
| WMK166N10T2 | TO-220 | Single | N | NO | 100 | ±20 | 166 | 3 | 4.3 | / | 3629 | 850 | 31 |
| WMB055N10HG2 | PDFN5*6-8L | Single | N | NO | 100 | ±20 | 97 | 3 | 5.5 | / | 2710 | 511 | 33 |
| WMK055N10HG2 | TO-220 | Single | N | NO | 100 | ±20 | 120 | 3 | 5.5 | / | 2710 | 511 | 33 |
| WMM055N10HG2 | TO-263 | Single | N | NO | 100 | ±20 | 120 | 3 | 5.5 | / | 2710 | 511 | 33 |
| WMB060N10LG2 | PDFN5*6-8L | Single | N | NO | 100 | ±20 | 97 | 1.7 | 6 | 8 | 2960 | 580 | 15 |
| WMK060N10LG2 | TO-220 | Single | N | NO | 100 | ±20 | 120 | 1.6 | 6 | 8 | 2960 | 580 | 15 |
| WMB080N10LG2 | PDFN5*6-8L | Single | N | NO | 100 | ±20 | 74 | 1.8 | 8 | 11 | 1890 | 352 | 9.7 |
| WMK080N10LG2 | TO-220 | Single | N | NO | 100 | ±20 | 82 | 1.8 | 8 | 11 | 1890 | 352 | 9.7 |
| WMS080N10LG2 | SOP-8L | Single | N | NO | 100 | ±20 | 15 | 1.8 | 9.2 | 12 | 1915 | 350 | 9.2 |
| WMB080N10HG2 | PDFN5*6-8L | Single | N | NO | 100 | ±20 | 74 | 3 | 8 | / | 2250 | 370 | 8.5 |
| WMO080N10HG2 | TO-252 | Single | N | NO | 100 | ±20 | 85 | 3 | 8 | / | 2250 | 370 | 8.5 |
| WML080N10HG2 | TO-220F | Single | N | NO | 100 | ±20 | 42 | 3 | 8.6 | / | 1890 | 352 | 7.5 |
| WMP73N10T2 | TO-251 | Single | N | NO | 100 | ±20 | 73 | 1.7 | 8.5 | 11 | 2860 | 451 | 14 |
| WMO73N10T2 | TO-252 | Single | N | NO | 100 | ±20 | 73 | 1.7 | 8.5 | 11 | 2950 | 430 | 12 |
| WMS099N10LG2 | SOP-8L | Single | N | NO | 100 | ±20 | 13 | 1.8 | 9.9 | 13.5 | 1620 | 300 | 5.8 |
| WMQ099N10LG2 | PDFN3*3-8L | Single | N | NO | 100 | ±20 | 47 | 1.8 | 9.9 | 13 | 1620 | 300 | 5.5 |
| WMB099N10LG2 | PDFN5*6-8L | Single | N | NO | 100 | ±20 | 62 | 1.8 | 9.9 | 13 | 1580 | 300 | 5.8 |
| WMK099N10LG2 | TO-220 | Single | N | NO | 100 | ±20 | 65 | 1.8 | 9.9 | 13 | 1620 | 300 | 5.5 |
| WMP099N10LG2 | TO-251 | Single | N | NO | 100 | ±20 | 63 | 1.8 | 9.9 | 13 | 1620 | 300 | 5.8 |
| WMB34N10T2 | PDFN5*6-8L | Single | N | NO | 100 | ±20 | 34 | 1.8 | 11.5 | 15 | 2197 | 325 | 10 |
| WMK75N10T2 | TO-220 | Single | N | NO | 100 | ±20 | 75 | 1.8 | 11.5 | 15 | 2150 | 320 | 7.2 |
| WMO60N10T2 | TO-252 | Single | N | NO | 100 | ±20 | 60 | 1.8 | 11.5 | 15 | 2120 | 330 | 7.2 |
| WMS12N10T2 | SOP-8L | Single | N | NO | 100 | ±20 | 11.5 | 1.8 | 12 | 15.5 | 2220 | 350 | 12 |
| WMS119N10LG2 | SOP-8L | Single | N | NO | 100 | ±20 | 11.5 | 1.8 | 13 | 17.5 | 1170 | 210 | 6.5 |
| WMQ119N10LG2 | PDFN3*3-8L | Single | N | NO | 100 | ±20 | 42 | 1.8 | 13 | 17.5 | 1170 | 210 | 6.5 |
| WMB119N10LG2 | PDFN5*6-8L | Single | N | NO | 100 | ±20 | 50 | 1.8 | 12.9 | 17.3 | 1170 | 210 | 6.5 |
| WMP119N10LG2 | TO-251 | Single | N | NO | 100 | ±20 | 55 | 1.8 | 13 | 17.5 | 1170 | 210 | 6.5 |
| WMS175N10LG2 | SOP-8L | Single | N | NO | 100 | ±20 | 10 | 1.8 | 17.5 | 26 | 880 | 182 | 7 |
| WMQ175N10LG2 | PDFN3*3-8L | Single | N | NO | 100 | ±20 | 30 | 1.8 | 17.5 | 26 | 838 | 149 | 5 |
| WMB175N10LG2 | PDFN5*6-8L | Single | N | NO | 100 | ±20 | 44 | 1.8 | 17.5 | 26 | 880 | 182 | 7 |
| WMK049N12HG2 | TO-220 | Single | N | NO | 120 | ±20 | 170 | 3 | 4.9 | / | 5150 | 595 | 19 |
| WMM049N12HG2 | TO-263 | Single | N | NO | 120 | ±20 | 170 | 3 | 4.9 | / | 5150 | 595 | 19 |
| WMK058N12HG2 | TO-220 | Single | N | NO | 120 | ±20 | 160 | 3 | 5.8 | / | 4315 | 521 | 11 |
| WMM058N12HG2 | TO-263 | Single | N | NO | 120 | ±20 | 160 | 3 | 5.8 | / | 4315 | 521 | 11 |
| WMB072N12LG2 | PDFN5*6-8L | Single | N | NO | 120 | ±20 | 90 | 2 | 7.2 | 10 | 3780 | 985 | 20 |
| WMK072N12LG2 | TO-220 | Single | N | NO | 120 | ±20 | 125 | 2 | 7.2 | 10 | 3750 | 985 | 21 |
| WMB072N12HG2 | PDFN5*6-8L | Single | N | NO | 120 | ±20 | 124 | 3 | 7.2 | / | 3612 | 975 | 19 |
| WMK072N12HG2 | TO-220 | Single | N | NO | 120 | ±20 | 124 | 3 | 7.2 | / | 3612 | 975 | 19 |
| WMB125N12LG2 | PDFN5*6-8L | Single | N | NO | 120 | ±20 | 61 | 2 | 12.5 | 17 | 2350 | 285 | 15 |
| WMK125N12LG2 | TO-220 | Single | N | NO | 120 | ±20 | 74 | 2 | 12.5 | 17 | 2075 | 235 | 9 |
| WMK161N15T2 | TO-220 | Single | N | NO | 150 | ±20 | 161 | 3 | 6 | / | 6220 | 480 | 11 |
| WMM161N15T2 | TO-263 | Single | N | NO | 150 | ±20 | 161 | 3 | 6 | / | 6220 | 480 | 11 |
| WML071N15HG2 | TO-220F | Single | N | NO | 150 | ±20 | 120 | 3 | 7.1 | / | 5470 | 389 | 13 |
| WMK071N15HG2 | TO-220 | Single | N | NO | 150 | ±20 | 135 | 3 | 7.1 | / | 5470 | 389 | 13 |
| WMM071N15HG2 | TO-263 | Single | N | NO | 150 | ±20 | 135 | 3 | 7.1 | / | 5470 | 389 | 13 |
| WMB115N15HG2 | PDFN5*6-8L | Single | N | NO | 150 | ±20 | 74 | 3 | 11.5 | / | 3420 | 262 | 9.2 |
| WMK115N15HG2 | TO-220 | Single | N | NO | 150 | ±20 | 90 | 3 | 11.5 | / | 3420 | 262 | 9.2 |
| WMM115N15HG2 | TO-263 | Single | N | NO | 150 | ±20 | 90 | 3 | 11.5 | / | 3420 | 262 | 9.2 |
| WMB198N15HG2 | PDFN5*6-8L | Single | N | NO | 150 | ±20 | 50 | 3 | 19.8 | / | 2150 | 145 | 12 |
| WMK198N15HG2 | TO-220 | Single | N | NO | 150 | ±20 | 59 | 3 | 19.8 | / | 2150 | 145 | 12 |
| WMO28N15T2 | TO-252 | Single | N | NO | 150 | ±20 | 28 | 3 | 48 | / | 512 | 75 | 11 |
| WMS06N15T2 | SOP-8L | Single | N | NO | 150 | ±20 | 5.8 | 3 | 50 | / | 518 | 75 | 13 |
| WMO20N15T2 | TO-252 | Single | N | NO | 150 | ±20 | 20 | 2 | 70 | 88 | 639 | 41 | 6 |
| WMS05N15T2 | SOP-8L | Single | N | NO | 150 | ±20 | 4.5 | 3 | 75 | / | 600 | 52 | 15 |
| WMB340N20HG2 | PDFN5*6-8L | Single | N | NO | 200 | ±20 | 40 | 3 | 34 | / | 1588 | 120 | 8 |
| WMK340N20HG2 | TO-220 | Single | N | NO | 200 | ±20 | 50 | 3 | 34 | / | 1588 | 120 | 8 |
| WMM340N20HG2 | TO-263 | Single | N | NO | 200 | ±20 | 50 | 3 | 34 | / | 1588 | 120 | 8 |
| WMO18N20T2 | TO-252 | Single | N | NO | 200 | ±20 | 18 | 2 | 130 | 150 | 514 | 26 | 6.5 |
| WML15N25T2 | TO-220F | Single | N | NO | 250 | ±20 | 15 | 2 | 238 | 270 | 496 | 21 | 6.2 |
| WMO15N25T2 | TO-252 | Single | N | NO | 250 | ±20 | 15 | 2 | 238 | 270 | 496 | 21 | 6.2 |
