產品概述
低壓MOS一般為12V-80V，其中30V-60V占主流，應用市場主要在小家電/消費類板塊/工業控制板/數碼控制板。常見封裝為TO-252/TO-220/DFN5*6/DFN3*3/SOT-23；

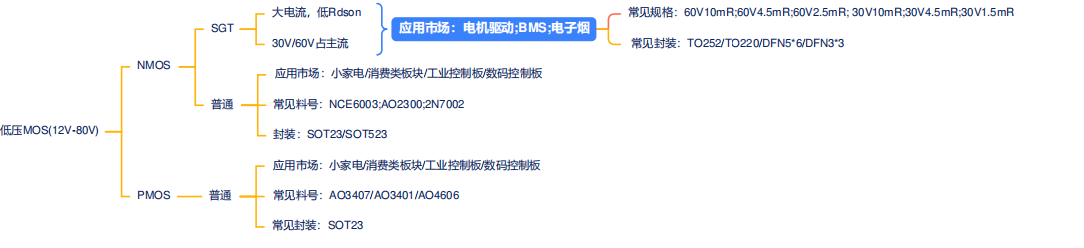

如圖解：
維安在安卓PC主板，NB主板上推出了對應的MOS管型號，主要有：
| Part No. | Package | Configuration | Type | VDS（V） | VGS(th) | Rds(on) |
| V | mΩ(Max.) | |||||
| 30V Trench for Load switch | ||||||
| WMB90N03T1 | PDFN5*6-8L | Single | N | 30 | 1.7 | 3 |
| WMQ80N03T1 | PDFN3*3-8L | Single | N | 30 | 1.7 | 4 |
| WMB108N03T1 | PDFN5*6-8L | Single | N | 30 | 1.6 | 4 |
| WMQ40N03T1 | PDFN3*3-8L | Single | N | 30 | 1.7 | 5.5 |
| WMB81N03T1 | PDFN5*6-8L | Single | N | 30 | 1.7 | 5.5 |
| WMQ46N03T1 | PDFN3*3-8L | Single | N | 30 | 1.7 | 8.5 |
| WMB58N03T1 | PDFN5*6-8L | Single | N | 30 | 1.7 | 8.5 |
| WMQ37N03T1 | PDFN3*3-8L | Single | N | 30 | 1.7 | 12 |
| WMB46N03T1 | PDFN5*6-8L | Single | N | 30 | 1.7 | 12 |
| WMQ28N03T1 | PDFN3*3-8L | Single | N | 30 | 1.75 | 18 |
| 30V SGT for DC/DC Converter | ||||||
| WMB017N03LG2 | PDFN5*6-8L | Single | N | 30 | 1.6 | 1.7 |
| WMQ023N03LG2 | PDFN3*3-8L | Single | N | 30 | 1.7 | 3 |
| WMB023N03LG2 | PDFN5*6-8L | Single | N | 30 | 1.7 | 2.3 |
| WMQ040N03LG2 | PDFN3*3-8L | Single | N | 30 | 1.6 | 4 |
| WMB040N03LG2 | PDFN5*6-8L | Single | N | 30 | 1.6 | 4 |
| WMQ052N03LG2 | PDFN3*3-8L | Single | N | 30 | 1.8 | 5.2 |
| WMB052N03LG2 | PDFN5*6-8L | Single | N | 30 | 1.8 | 5.2 |
| WMQ30N03T2 | PDFN3*3-8L | Single | N | 30 | 1.8 | 6.3 |
| WMB52N03T2 | PDFN5*6-8L | Single | N | 30 | 1.7 | 6.3 |
| WMQ080N03LG2 | PDFN3*3-8L | Single | N | 30 | 1.7 | 8 |
| WMB080N03LG2 | PDFN5*6-8L | Single | N | 30 | 1.7 | 8 |
| WMQ098N03LG2 | PDFN3*3-8L | Single | N | 30 | 1.7 | 9.8 |
| WMB098N03LG2 | PDFN5*6-8L | Single | N | 30 | 1.7 | 9.8 |
| 40V SGT for DC/DC Converter | ||||||
| WMB018N04LG2 | PDFN5*6-8L | Single | N | 40 | 1.7 | 1.8 |
| WMQ032N04LG2 | PDFN3*3-8L | Single | N | 40 | 1.7 | 3.4 |
| WMB032N04LG2 | PDFN5*6-8L | Single | N | 40 | 1.7 | 3.2 |
| WMQ050N04LG2 | PDFN3*3-8L | Single | N | 40 | 1.6 | 5 |
| WMQ090N04LG2 | PDFN3*3-8L | Single | N | 40 | 1.6 | 9 |
| WMB090N04LG2 | PDFN5*6-8L | Single | N | 40 | 1.6 | 9 |
| WMB042DN03LG2 | PDFN5*6-8L | Dual | N | 30 | 1.7 | 4.2 |
| 30 | 1.7 | 5.5 | ||||
| WMB31430DN | PDFN5*6-8L | Dual | N | 30 | 1.6 | 1.3 |
| 30 | 1.6 | 4.6 |
