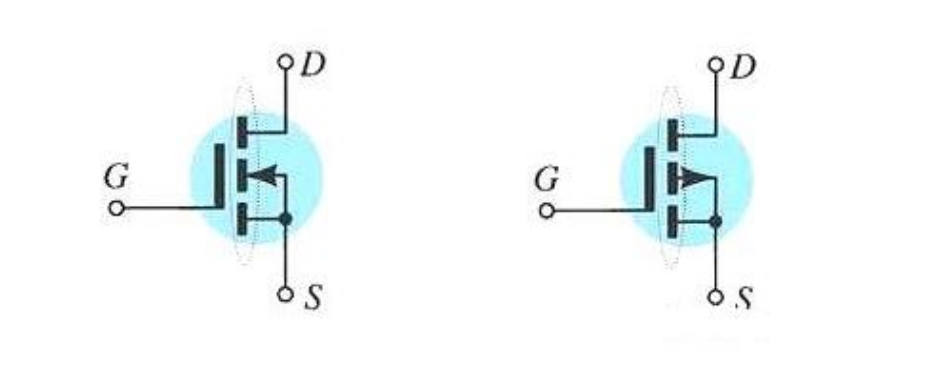

MOS管是壓控流器件，也就是由柵極上所加的電壓控制漏極與源極之間電流。MOSFET管是FET的一種，可以被制造為增強型或者耗盡型，P溝道或N溝道共四種類型，但實際應用的只有增強型的N溝道MOS管和增強型的P溝道MOS管。實際應用中，NMOS居多。
Wayon維安一級代理商推出中高壓MOS 100V-250V N溝道增強型維安MOS管WMT04N15T1
Description
WMT04N15T1 uses advanced power trench technology that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.
Features
? VDS= 150V, ID = 4A RDS(on) < 160mΩ @ VGS = 10V
? High Density Cell Design for Ultra Low Rdson
? Fully Characterized Avalanche Voltage and Current
? Excellent Package for Good Heat Dissipation
Applications
? Power Switching Application
? Hard Switched and High Frequency Circuits
Wayon維安一級代理商20V-250V Trench N Channel Power MOSFET選型參數：
| Part No. | Package | Configuration | Type | ESD | VDS | ID at 25℃ |
| V | A(Max.) | |||||
| 20V-250V Trench N Channel Power MOSFET | ||||||
| WMR15N02T1 | DFN2*2-6L | Single | N | NO | 20 | 15 |
| WMR09N02T1 | DFN2*2-6L | Single | N | NO | 20 | 9 |
| WMQ30N02T1 | PDFN3*3-8L | Single | N | NO | 20 | 30 |
| WMO90N02T1 | TO-252 | Single | N | NO | 20 | 90 |
| WMO60N02T1 | TO-252 | Single | N | NO | 20 | 60 |
| WM02DN080C | DFN2*3-6L | Dual | N | YES | 20 | 8 |
| WM02DN085C | DFN2*3-6L | Dual | N | YES | 20 | 8.5 |
| WM02DN095C | DFN2*3-6L | Dual | N | YES | 20 | 9.5 |
| WM02DN110C | DFN2*3-6L | Dual | N | YES | 20 | 11 |
| WM02DN560Q | DFN3*3-8L | Dual | N | YES | 20 | 56 |
| WMB90N03T1 | PDFN5*6-8L | Single | N | NO | 30 | 90 |
| WMK180N03T1 | TO-220 | Single | N | NO | 30 | 180 |
| WMO150N03T1 | TO-252 | Single | N | NO | 30 | 150 |
| WMM180N03T1 | TO-263 | Single | N | NO | 30 | 180 |
| WMQ45N03T1 | PDFN3*3-8L | Single | N | YES | 30 | 45 |
| WMQ80N03T1 | PDFN3*3-8L | Single | N | NO | 30 | 80 |
| WMB108N03T1 | PDFN5*6-8L | Single | N | NO | 30 | 108 |
| WMS15N03T1 | SOP-8L | Single | N | NO | 30 | 15 |
| WMO96N03T1 | TO-252 | Single | N | NO | 30 | 96 |
| WMR16N03T1 | DFN2*2-6L | Single | N | NO | 30 | 16 |
| WMR15N03T1 | DFN2*2-6L | Single | N | NO | 30 | 15 |
| WMQ40N03T1 | PDFN3*3-8L | Single | N | NO | 30 | 40 |
| WMB81N03T1 | PDFN5*6-8L | Single | N | NO | 30 | 81 |
| WMO80N03T1 | TO-252 | Single | N | NO | 30 | 80 |
| WMS13N03T1 | SOP-8L | Single | N | NO | 30 | 13 |
| WMK75N03T1 | TO-220 | Single | N | NO | 30 | 75 |
| WMR14N03T1 | DFN2*2-6L | Single | N | NO | 30 | 14 |
| WMR13N03T1 | DFN2*2-6L | Single | N | NO | 30 | 12.5 |
| WMR12N03T1 | DFN2*2-6L | Single | N | NO | 30 | 12 |
| WMQ46N03T1 | PDFN3*3-8L | Single | N | NO | 30 | 46 |
| WMB58N03T1 | PDFN5*6-8L | Single | N | NO | 30 | 58 |
| WMO55N03T1 | TO-252 | Single | N | NO | 30 | 55 |
| WMR10N03T1 | DFN2*2-6L | Single | N | NO | 30 | 10 |
| WMQ37N03T1 | PDFN3*3-8L | Single | N | NO | 30 | 37 |
| WMQ36DN03T1 | PDFN3*3-8L | Dual | N | NO | 30 | 36 |
| WMB46N03T1 | PDFN5*6-8L | Single | N | NO | 30 | 46 |
| WMS11N03T1 | SOP-8L | Single | N | NO | 30 | 11 |
| WM03N115A | SOP-8L | Single | N | NO | 30 | 11.5 |
| WMR07N03T1 | DFN2*2-6L | Single | N | NO | 30 | 7 |
| WMQ28N03T1 | PDFN3*3-8L | Single | N | NO | 30 | 28 |
| WMS10DN03T1 | SOP-8L | Dual | N | NO | 30 | 10 |
| WM03N105A | SOP-8L | Single | N | NO | 30 | 10.5 |
| WMR06N03T1 | DFN2*2-6L | Single | N | NO | 30 | 6 |
| WMB116N04T1 | PDFN5*6-8L | Single | N | NO | 40 | 116 |
| WMO150N04T1 | TO-252 | Single | N | NO | 40 | 150 |
| WMK188N04T1 | TO-220 | Single | N | NO | 40 | 188 |
| WMQ55N04T1 | PDFN3*3-8L | Single | N | NO | 40 | 55 |
| WMB70N04T1 | PDFN5*6-8L | Single | N | NO | 40 | 70 |
| WMK80N04T1 | TO-220 | Single | N | NO | 40 | 80 |
| WMO75N04T1 | TO-252 | Single | N | NO | 40 | 75 |
| WMQ50N04T1 | PDFN3*3-8L | Single | N | NO | 40 | 50 |
| WMB56N04T1 | PDFN5*6-8L | Single | N | NO | 40 | 56 |
| WMO60N04T1 | TO-252 | Single | N | NO | 40 | 60 |
| WMQ30N04T1 | PDFN3*3-8L | Single | N | NO | 40 | 30 |
| WMB116N06T1 | PDFN5*6-8L | Single | N | NO | 60 | 116 |
| WMS18N06T1 | SOP-8L | Single | N | NO | 60 | 18 |
| WMO105N06T1 | TO-252 | Single | N | NO | 60 | 105 |
| WMO70N06T1 | TO-252 | Single | N | NO | 60 | 70 |
| WMB75N06T1 | PDFN5*6-8L | Single | N | NO | 60 | 75 |
| WMS13N06T1 | SOP-8L | Single | N | NO | 60 | 13 |
| WMO80N06T1 | TO-252 | Single | N | NO | 60 | 80 |
| WMK80N06T1 | TO-220 | Single | N | NO | 60 | 80 |
| WMQ44N06T1 | PDFN3*3-8L | Single | N | NO | 60 | 44 |
| WMB52N06T1 | PDFN5*6-8L | Single | N | NO | 60 | 52 |
| WMS10N06T1 | SOP-8L | Single | N | NO | 60 | 10 |
| WMO40N06T1 | TO-252 | Single | N | NO | 60 | 40 |
| WMO20N06T1 | TO-252 | Single | N | NO | 60 | 20 |
| WMS05N06T1 | SOP-8L | Single | N | NO | 60 | 4.5 |
| WMO17N06T1 | TO-252 | Single | N | NO | 60 | 17 |
| WMQ35N07T1 | PDFN3*3-8L | Single | N | NO | 65 | 35 |
| WMB64N10T1 | PDFN5*6-8L | Single | N | NO | 100 | 64 |
| WMS11N10T1 | SOP-8L | Single | N | NO | 100 | 11 |
| WMS08N10T1 | SOP-8L | Single | N | NO | 100 | 8 |
| WMK28N10T1 | TO-220 | Single | N | NO | 100 | 28 |
| WMO28N10T1 | TO-252 | Single | N | NO | 100 | 28 |
| WMQ12N10T1 | PDFN3*3-8L | Single | N | NO | 100 | 12.5 |
| WMO14N10T1 | TO-252 | Single | N | NO | 100 | 14 |
| WMT05N10T1 | SOT-223 | Single | N | NO | 100 | 5 |
| WMK16N10T1 | TO-220 | Single | N | NO | 100 | 15.8 |
| WMO15N10T1 | TO-252 | Single | N | NO | 100 | 14.6 |
| WMO09N10T1 | TO-252 | Single | N | NO | 100 | 9 |
| WMT04N15T1 | SOT-223 | Single | N | NO | 150 | 4 |
| WMO15N15T1 | TO-252 | Single | N | NO | 150 | 15 |
| WMO09N15T1 | TO-252 | Single | N | NO | 150 | 8.6 |
| WMO18N20T1 | TO-252 | Single | N | NO | 200 | 18 |
