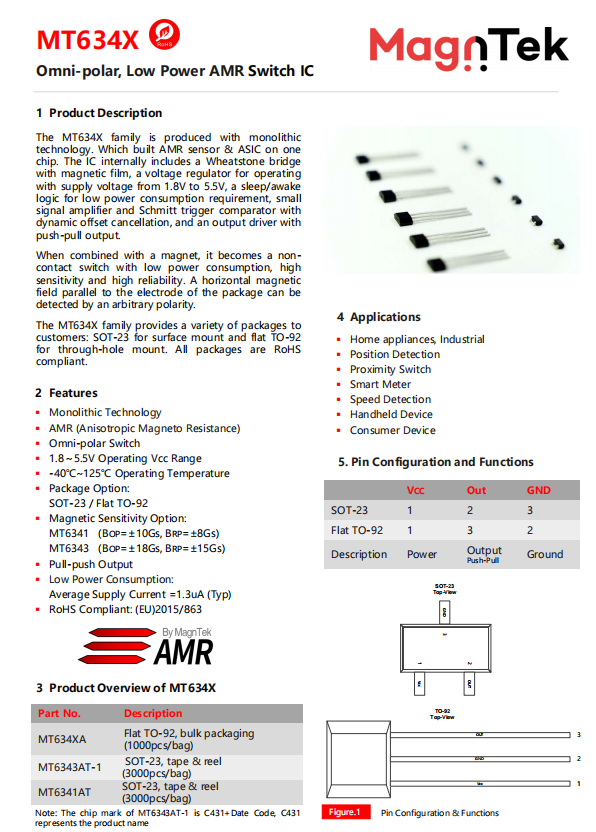

The MT634Xfamily is produced with monolithictechnology. Which built AMR sensor & ASIC on onechip.The iC internally includes a Wheatstone bridgewith magnetic film, a voltage regulator for operatingwith supply voltage from 1.8V to 5.5V, a sleep/awakelogic for low power consumption requirement, smallsignal amplifier and Schmitt trigger comparator withdynamic offset cancellation, and an output driver withpush-pull output.
Magntek麥歌恩一級代理商推出的MT6343采用單芯片集成工藝，具有高性能以及高可靠性。芯片內集成了AMR橋阻與ASIC芯片。1.8V~5.5V工作電壓，并且具有優良的溫度補償能力，使得芯片能工作在-40~125℃環境中，并保持優良的性能以及—致性。

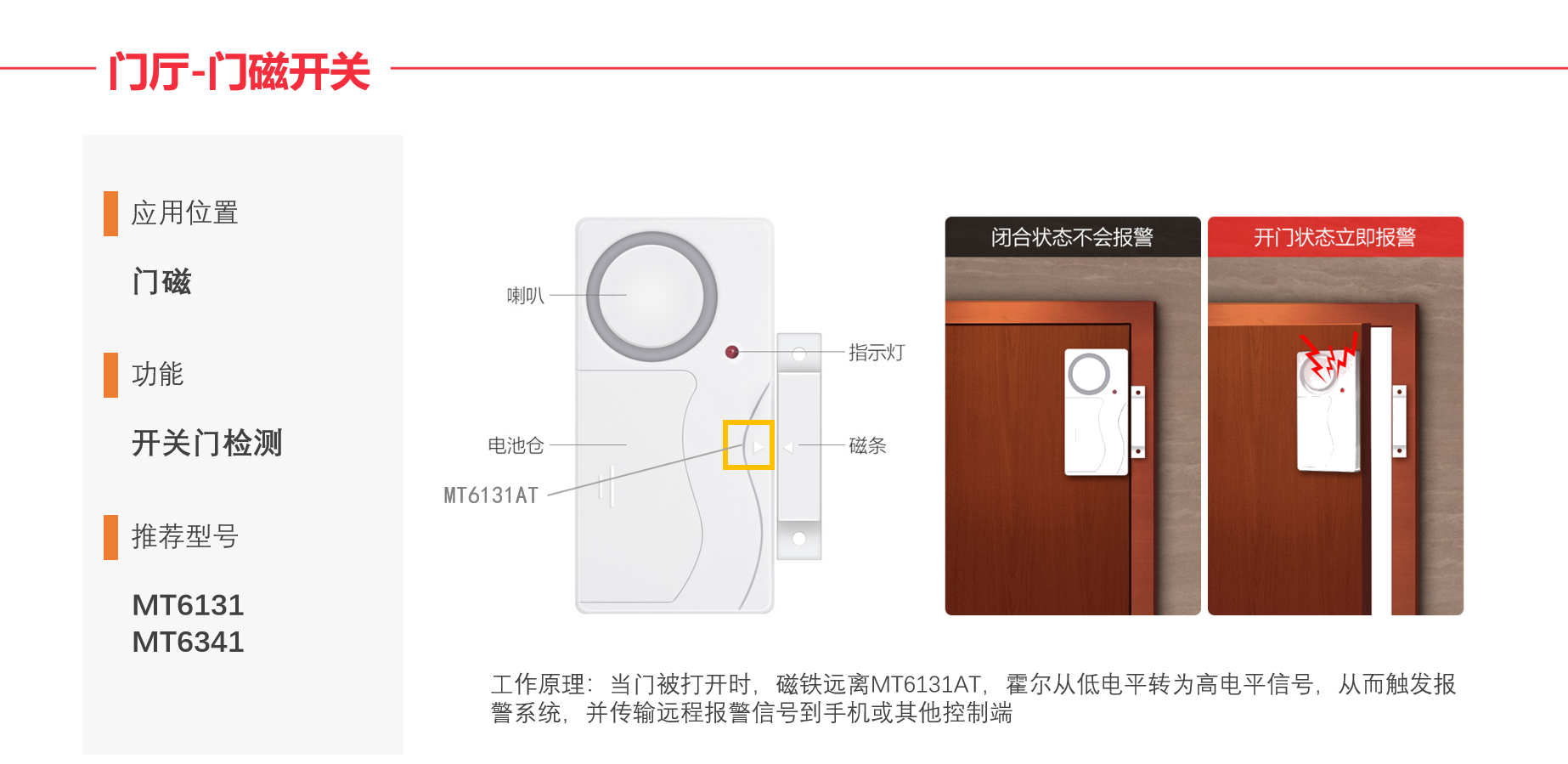

When combined with a magnet, it becomes a non-contact switch with low power consumption,highsensitivity and high reliability. A horizontal magneticfield parallel to the electrode of the package can bedetected by an arbitrary polarity.
Magntek麥歌恩一級代理商推出的MT6343系列與磁鐵結合，成為一種低功耗、高靈敏度、高可靠性的非接觸式開關。與封裝電極平行的水平磁場可被任意極性檢測。
The MT634X family provides a variety of packages tocustomers: SOT-23 for surface mount and flat To-92for through-hole mount. All packages are RoHScompliant.
Magntek麥歌恩一級代理商推出的MT634X系列為客戶提供各種包裝：表面安裝Sot-23，通孔安裝平面到-92。所有包都符合RoHS標準。
