維安自恢復保險絲LP-SM 2920系列PPTC特點: 電阻低   過流保護  過溫度保護  可重復使用

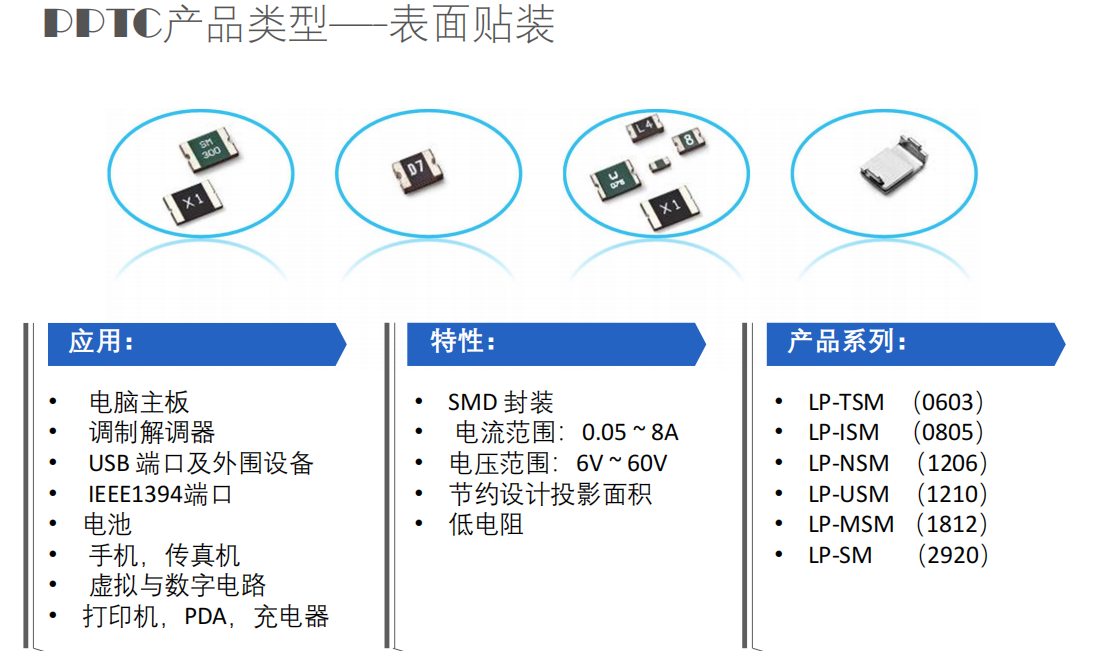

Features :Small size of 2920/3425,Fast tripping resettable circuit protection, Surface mount packaging for automated assembly,Agency recognition: UL、CSA、TUV.

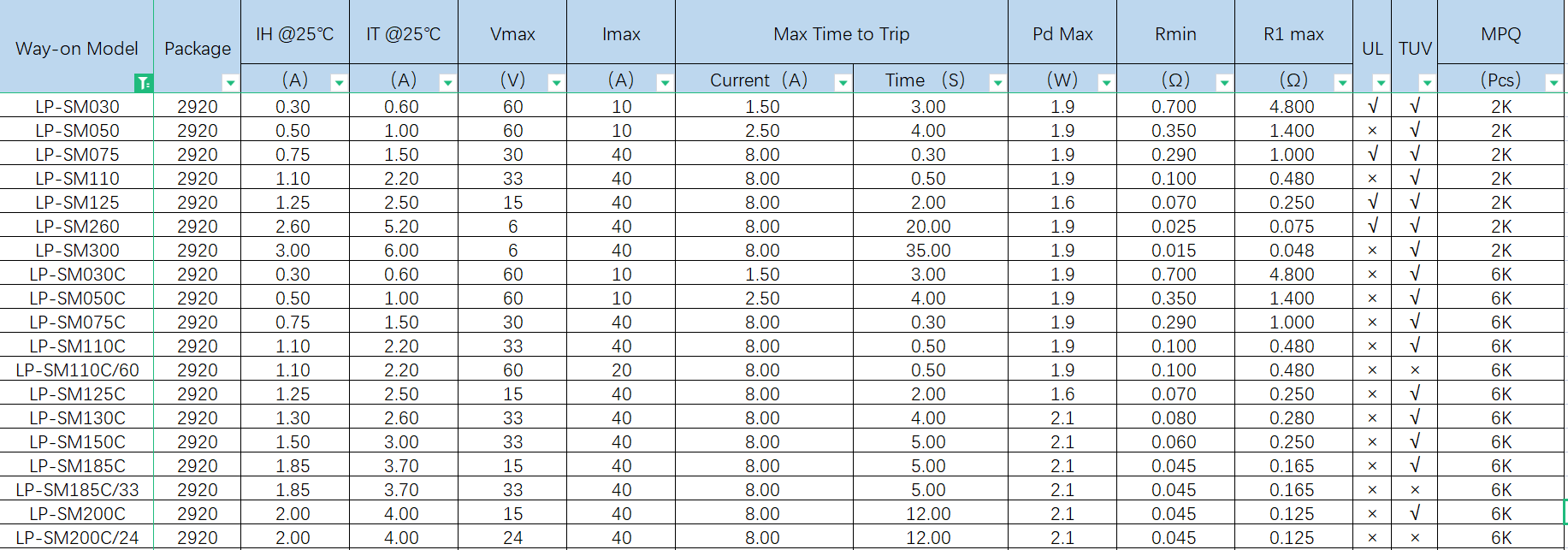

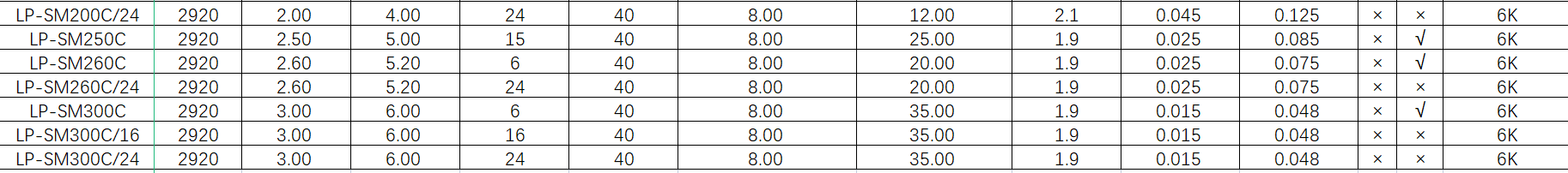

IH=Hold current: maximum current at which the device will not trip at 25℃ still air.

IT=Trip current: minimum current at which the device will always trip at 25℃ still air.

Vmax=Maximum voltage device can withstand without damage at rated current.

Imax=Maximum fault current device can withstand without damage at rated voltage.

Max Time-to-trip=Maximum time to trip(s) at assigned current.

Pd max=Maximum power dissipation: maximum power dissipated by the device when in state air environment.

Rmin=Minimum device resistance at 25℃ prior to tripping.

Rmax=Maximum device resistance at 25℃ prior to tripping.

R1max=Maximum device resistance at 25℃, of device one hour after being tripped the first time.

特點：2920/3425小尺寸，快速跳閘可復位電路保護，自動組裝的表面貼裝封裝，機構認可：UL、CSA、TUV。

IH=保持電流：在25℃靜止空氣中設備不會跳閘的最大電流。

IT=跳閘電流：裝置在25℃靜止空氣中始終跳閘的最小電流。

Vmax=設備在額定電流下能夠承受的最大電壓，且不會損壞。

Imax=設備在額定電壓下能夠承受的最大故障電流，且不會造成損壞。

最大跳閘時間=指定電流下的最大跳閘時間。

Pd max=最大功耗：設備在空氣環境中的最大功耗。

Rmin=跳閘前25℃時的最小設備電阻。

Rmax=跳閘前25℃時的最大設備電阻。

R1max=裝置首次跳閘一小時后25℃時的最大裝置電阻。
