Wayon維安代理商推出首款集成硅基共模濾波和靜電防護的ESD&EMI產品
隨著家庭娛樂設備高速率互聯通信和不斷小型化的需求趨勢，不同通信接口之間的干擾愈發嚴重。例如USB3.0和WIFI之間就經常會出現同頻干擾問題。而Wayon的集成硅基共模濾波和靜電防護的產品專門用于移動設備高速數據傳輸端口的EMI噪聲濾除和ESD靜電保護，不僅滿足了設備小型化的需求，同時也有效避免了信號干擾。

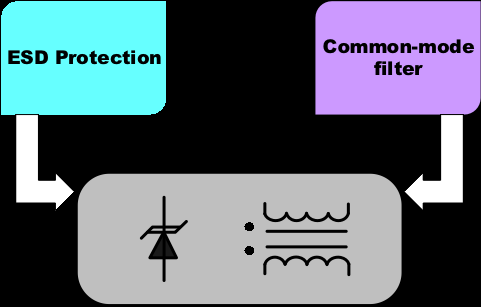

該產品采用行業領先的半導體硅材料共模電感技術，集成多路超低電容的TVS陣列，結合超小型化的DFN封裝，具有高共模抑制比，超寬的差模頻帶，以及超低的ESD鉗位電壓等特點，為諸如USB、HDMI、MHL、MIPI、LVDS等高速數據傳輸系統的EMC能力改善和靜電防護提供保障。該技術產品已經在國際客戶批量交付使用，累計出貨超過1000萬片。

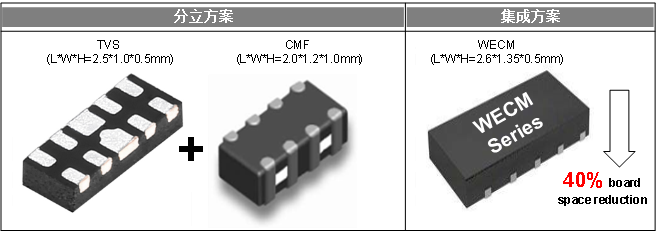

采用硅基共模電感和靜電防護集成的方案，不僅可以提高器件參數的一致性，更為分立方案的用戶節省40%的PCB空間。
*CMF=common mode filter

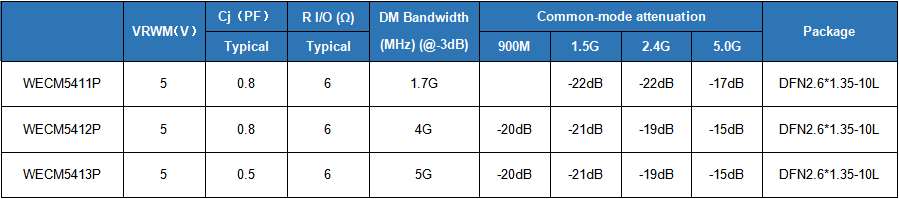

Wayon WECM量產產品系列

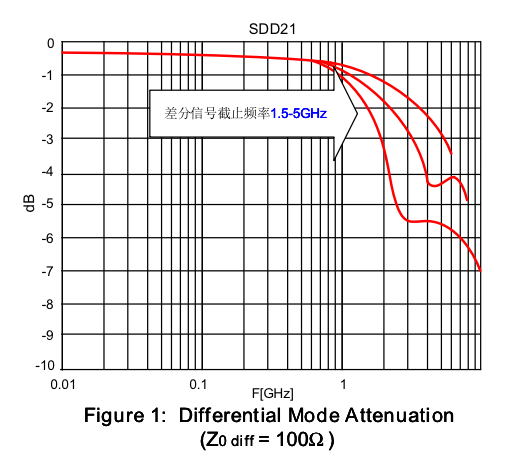

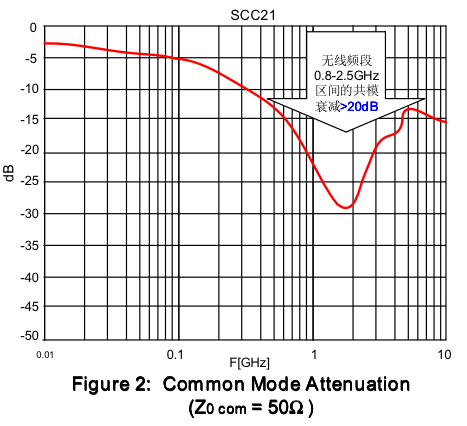

· 插入損耗 - Insertion loss
· 信號完整性- Eye Diagram Temp

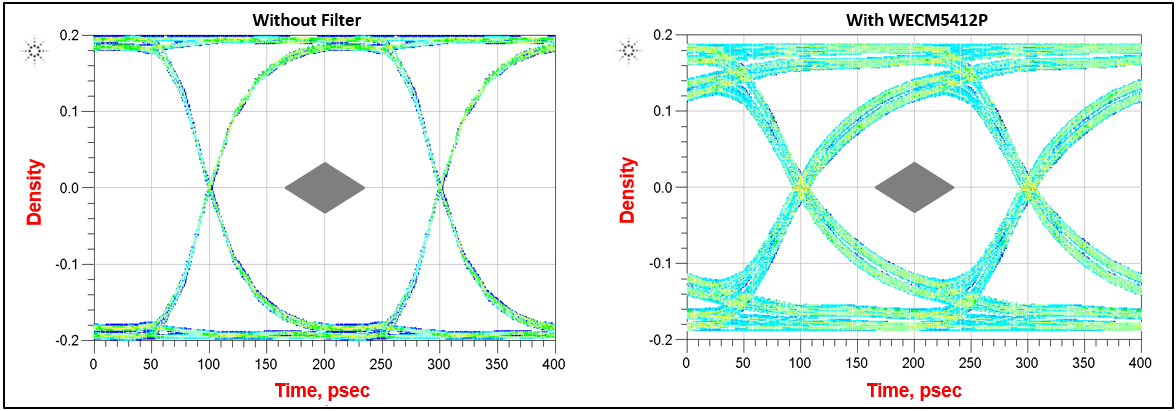

Figure 3: USB 3.0 Eye Diagram Test for 5Gbps Data Rat
